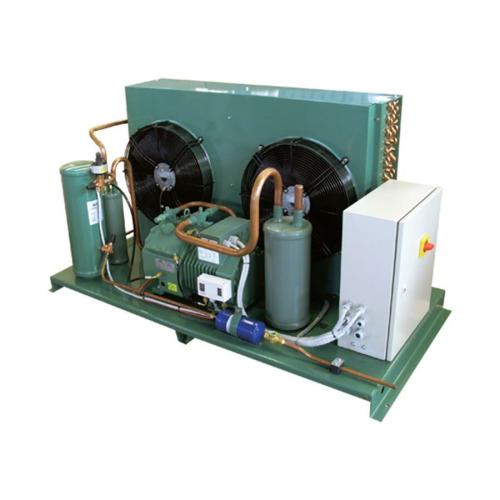

1. Product Overview

This series of condensers constitutes highly efficient heat exchange equipment specifically engineered for refrigeration systems within various cold storage facilities. Primarily designed for integration with indoor compressors (or parallel units), they are installed on external rooftops or ground surfaces to cool and condense high-temperature, high-pressure gaseous refrigerant within the refrigeration circuit into liquid form.
Employing advanced internally threaded copper tubing with corrugated aluminium fins and mechanical expansion technology, this product achieves exceptional heat transfer efficiency. Whether in traditional flat-plate configurations or space-saving V-shaped designs, it meets the rigorous heat dissipation demands of facilities ranging from small walk-in cold stores to large-scale logistics warehouses.

2. Product Classification and Structure
2.1 Flat-bed Type
Structure: Features horizontal or vertical airflow delivery with a simple, robust design.
Characteristics: Ensures smooth airflow organisation and facilitates exceptionally easy maintenance and cleaning, making it the most common choice for small to medium-sized cold stores.
Suitable For: Stand-alone compressor units where ample roof installation space is available.
2.2 V-Type
Structure: Coils arranged in a ‘V’ configuration on both sides, with air intake at the sides and exhaust at the top.
Characteristics:
* Compact footprint: Approximately 30%-40% less installation space required compared to flat-panel units.
* High heat exchange efficiency: Unique V-angle design optimises airflow patterns to prevent warm air recirculation.
* Robust structural integrity: Suitable for large-scale parallel units with multiple fans.

3. Key Specifications
Cooling Capacity Range: 10kW - 1200kW (covers requirements from convenience store cold rooms to large-scale slaughterhouses)
Fan Type: Low-noise external rotor axial fan
Motor Voltage: 380V/50Hz/3Ph (standard), optional EC variable-frequency fan
Suitable Refrigerants: R404A, R507, R22, R134a, R448A/R449A
Fin Material:
* Standard: Hydrophilic Aluminium
* Optional: Epoxy Resin Coating (Gold/Blue Fin) or Copper Fins (for highly corrosive coastal environments)
