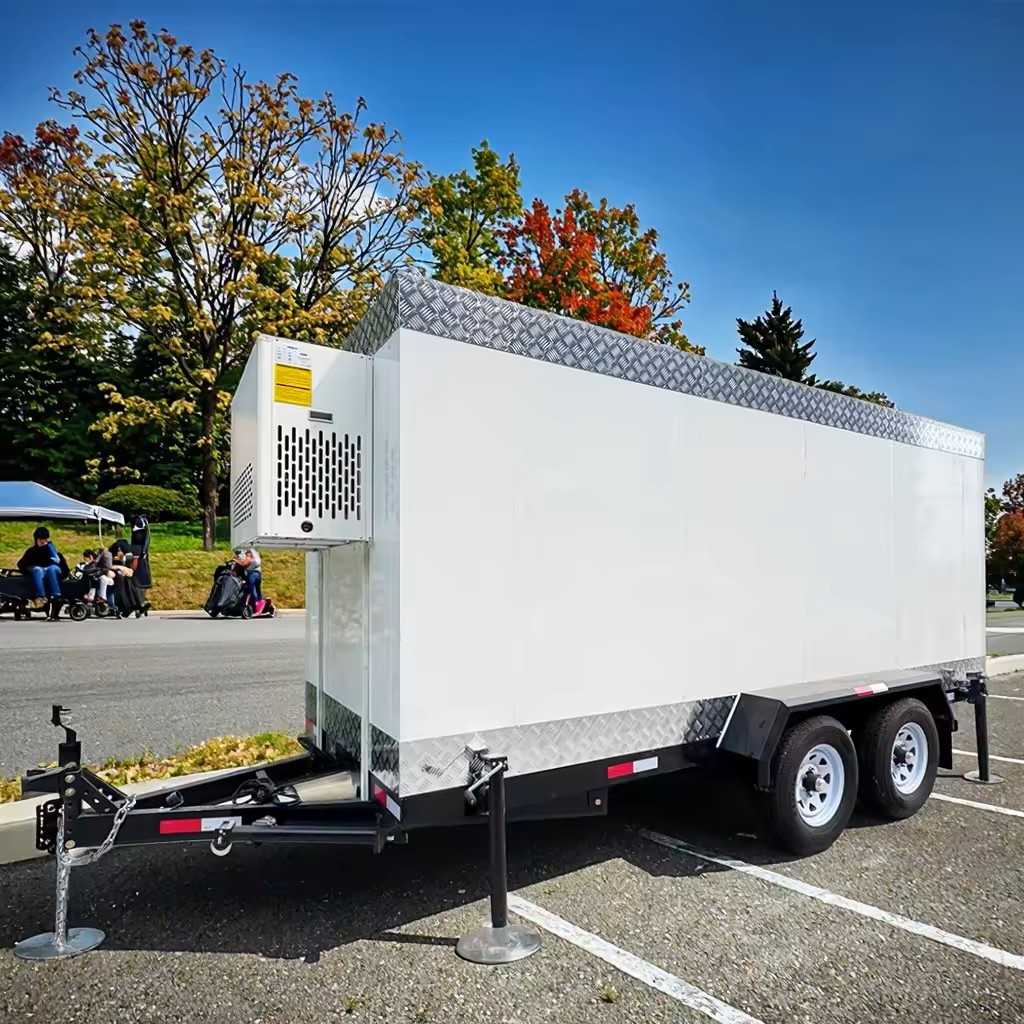

Chiller Trailer for Meat Storage Freezer Trailer
Description of Chiller Trailer for Meat Storage Freezer Trailer
Designed for mobility and flexibility, these trailer units can be easily towed and deployed at slaughterhouses, meat processing plants, logistics hubs, wholesale markets, outdoor distribution points, and temporary storage sites. The intelligent temperature control system supports real‑time monitoring, data recording, and alarm functions, ensuring full traceability and operational safety. With robust chassis, durable construction, and reliable safety features, our chiller and freezer trailers deliver strong stability and long service life for heavy‑duty meat industry applications.
Whether for long‑haul transportation, temporary cold storage, or emergency supply support, our chiller and freezer trailers ensure that meat products remain in optimal condition throughout the cold chain, making them an essential solution for the meat processing, logistics, and commercial distribution industries.
Core characteristics of Chiller Trailer for Meat Storage Freezer Trailer
Wide & Precise Temperature Control for Diversified Meat Needs
Polyurethane (PU) Sandwich Panels:One thing about our chiller trailers is that they are affordable. We make them using high-quality materials,but we also make sure they are within most people's budgets. So,even if you are looking for a good chiller trailer but on a budget, we have you covered. Panel Material Diversity: Surface materials vary by application: color-coated steel (standard), 304 stainless steel (food/pharmaceutical grade), embossed aluminium (anti-slip flooring), or galvanized steel (corrosion-resistant).Meat products have varied cold storage requirements—fresh meat needs low-temperature chilling to retain juiciness, while frozen meat requires deep freezing to halt bacterial activity. Our chiller and freezer trailers are equipped with dual-mode temperature control, perfectly adapting to these different demands.
Food-Grade Hygienic Design to Eliminate Contamination Risks
Meat is highly perishable and prone to contamination, so strict hygiene standards are non-negotiable for meat storage and transportation equipment. Our trailers adopt a full food-grade hygienic design, from materials to structure, to eliminate all potential contamination risks and simplify daily cleaning and disinfection.The interior lining is made of food-grade 304 stainless steel or food-safe FRP panels, which are non-toxic, odorless, corrosion-resistant, and non-absorbent. These materials do not react with meat juices, blood, or grease, ensuring that the meat remains free from secondary contamination. The interior adopts a seamless construction with smooth surfaces and rounded corners, avoiding crevices where blood, grease, or food debris could accumulate—these crevices are often breeding grounds for bacteria, which is a key pain point solved by our design.
High-Performance Insulation Structure for Energy Efficiency & Temperature Stability
High-Performance Insulation Structure for Energy Efficiency & Temperature StabilityThe insulation effect of the trailer body directly determines the stability of the internal temperature and energy consumption. Our chiller and freezer trailers adopt advanced "sandwich" panel insulation technology, which is specially optimized for meat transportation scenarios to minimize heat gain and reduce energy consumption.The core insulation material is high-density polyurethane foam with extremely low thermal conductivity. This material not only has excellent insulation performance but also maintains stable insulation effect for a long time, without aging or deformation even after years of use. To eliminate cold bridges—another major cause of temperature loss—the trailer adopts integrated panel bonding and sealed joint design, using high-quality sealing strips to seal all gaps between panels, doors, and windows, effectively preventing heat leakage and cold loss.
Optimized Air Circulation for Uniform Cooling
Uneven temperature distribution in the trailer compartment is a common problem in cold chain transportation, which can lead to partial meat spoilage, affecting the overall quality of the cargo. Our trailers solve this problem through an optimized air circulation system, ensuring that every corner of the compartment maintains a consistent temperature.The system is equipped with forced air circulation equipment, and vents are reasonably arranged on the walls, floor, and door of the compartment to form 360° circulating airflow, eliminating hot and cold spots. The floor is designed with raised profiles, which form built-in air ducts to improve the airflow under the cargo. This design is particularly effective for packaged meat cartons or boxes, as it prevents the bottom of the cargo from being in direct contact with the floor, ensuring that the cold air can circulate evenly around each package.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
| Product Type |
Chiller Trailer for Meat Storage Freezer Trailer |
|
Applicable Industries |
Restaurant, Retail, Food Shop, Food & Beverage Shops |
|
After Warranty Service |
Video technical support, Online support |
|
Voltage |
110V/220V/380V |
|
Power |
5-20 kW |
|
Refrigeration Capacity |
10-50 kW (34,000-170,000 BTU/h) |
|
Temperature Range |
-20°C to 10°C (-4°F to 50°F) |
|
Material |
Galvanized Steel |
|
Floor |
Non-slip Flooring (aluminum) with Drain |
|
Wheels |
2/4 Wheels |
|
Evaporator |
Air Cooled (Ceiling Mounted, Floor Mounted) |
|
Certification |
CE,ISO |
|
Service Door |
Customized |
|
Insulation Thickness |
50mm (2in) |
|
Specification |
Customized |
Frequently Asked Questions (FAQ)
1. What is a mobile refrigerated trailer?
A mobile refrigerated trailer (often called a "reefer trailer" or "cool room on wheels") is a towable insulated unit equipped with a refrigeration system. It is designed to transport or store temperature-sensitive goods like food, beverages, flowers, and pharmaceuticals.
2. Can this trailer be used as both a cooler and a freezer?
Yes, most of our units are equipped with adjustable refrigeration systems. You can set the temperature to keep items chilled (0°C to 4°C) or deep-frozen (-18°C or lower), depending on your needs.
3. What are the main applications for this trailer?
Common uses include outdoor catering events, emergency backup for restaurants, transporting fresh produce for farmers, game meat storage for hunters, floral delivery, and cold chain logistics for medical supplies.
4. Is the trailer suitable for long-distance travel?
Absolutely. The trailer is built on a heavy-duty chassis with a suspension system designed for highway speeds and long-distance transport.
5. How is the refrigeration unit powered?
The unit typically runs on standard single-phase AC power (110V or 220V, depending on your region). It can be plugged into a standard wall outlet or powered by a portable generator.
6. Does the refrigeration unit run while the vehicle is towing it?
Standard electric units require a generator mounted on the trailer tongue or in the towing vehicle to run while in motion. Alternatively, the high-quality insulation keeps goods cold for shorter trips without power.
7. How long does it take to reach the desired temperature?
An empty trailer typically pulls down to 0°C (32°F) within 30 to 60 minutes, depending on the ambient temperature and the power of the cooling unit.
8. How much power does the unit consume?
Power consumption varies by model, but most compact units are energy-efficient, drawing between 10 to 15 amps during startup and significantly less while running.
9. Is there a backup power option?
We recommend using a portable generator (usually 3.5kW or higher) as a backup power source if shore power is unavailable.
10. What kind of vehicle do I need to tow this trailer?
Our single-axle compact models are lightweight and can be towed by most standard SUVs, pickup trucks, and even some sedans. Please check your vehicle's towing capacity against the trailer's Gross Vehicle Weight (GVW).
11. Do I need a special driver’s license to tow this?
For most small to medium-sized trailers (under 3,500kg or 7,700lbs), a standard driver’s license is sufficient. However, regulations vary by country and state, so please check local laws.
12. What type of connection does the trailer lights use?
We install standard 7-pin (round) or flat connectors adaptable to most vehicles.
13. What is the payload capacity?
Payload depends on the specific axle rating. A standard single-axle unit typically carries between 500kg to 1,000kg (1,100lbs to 2,200lbs). Heavy-duty options are available.
14. What material is the insulation made of?
We use high-density Polyurethane (PU) sandwich panels (typically 75mm to 100mm thick), which offer superior thermal efficiency compared to Styrofoam.
15. Is the floor slip-resistant?
Yes, the floor is typically finished with checkered aluminum plate (diamond plate) or an anti-slip resin coating to ensure safety during loading and unloading.
16. Does it come with internal shelving?
Shelving is optional. We can install stainless steel or food-grade wire racking, or leave the space open for pallet storage.
17. Is the interior light waterproof?
Yes, the trailer comes equipped with an IP65-rated LED internal light for safe operation in wet and cold conditions.
18. Are the doors lockable?
Yes, the rear doors feature heavy-duty stainless steel cam-locks that are fully lockable to secure your valuable cargo.
19. Is there an emergency release inside?
Safety is a priority. All our walk-in trailers feature an internal safety release mechanism, allowing anyone trapped inside to open the door easily.
20. How do I clean the interior?
The interior panels are seamless and water-resistant. You can wash them down with mild detergent and water. A floor drain is usually included for easy washout.
21. How often does the refrigeration unit need servicing?
We recommend a basic check-up (cleaning condenser coils, checking refrigerant levels) once a year or every 6 months if used heavily.
22. What should I do if the unit stops working?
Check your power source and breakers first. If the issue persists, our units are made by major manufacturers (like Govi, KingClima, or Carrier), so parts and service technicians are widely available.
23. Can I customize the size or color?
Yes, we offer OEM/ODM services. We can customize dimensions, door placement, exterior wrap/branding, and chassis specifications.
24. What is the warranty period?
We typically offer a 1-year warranty on the trailer chassis and body, and a separate warranty (usually 1 year) from the refrigeration unit manufacturer.
25. Do you ship internationally?
Yes, we ship worldwide. Trailers can be shipped fully assembled (CBU) or in flat-pack (CKD) form to save on shipping costs.
