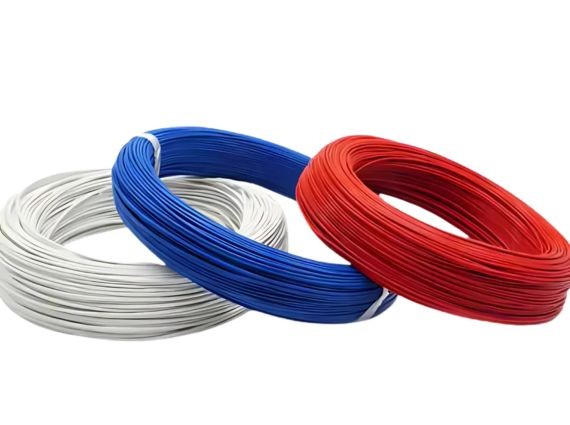

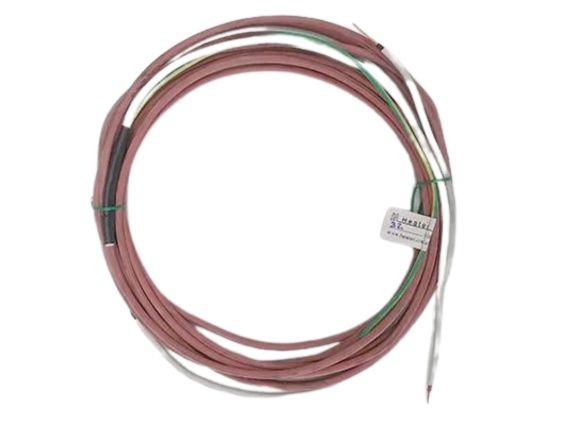

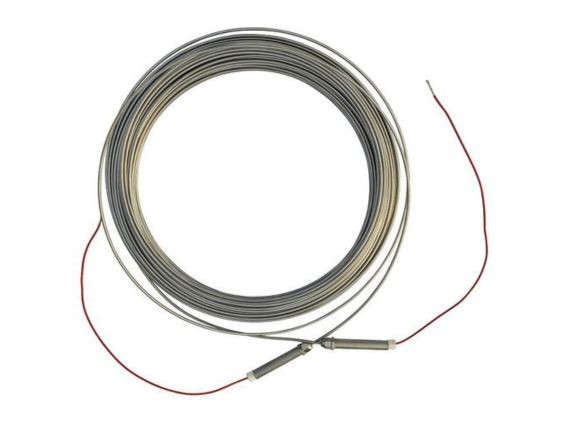

Cold Room Door Heater Cable
Made with high‑temperature silicone insulation and a high‑efficiency heating core, it features strong flexibility, waterproofing, and corrosion resistance for long‑term use in harsh cold‑room conditions. It supports standard voltages (110V/220V) and customizable wattage and length to fit various door sizes and installation needs.
This heater cable ensures smooth door operation, reduces energy waste, and extends the service life of cold room sealing systems. It is widely used in food cold chains, logistics warehouses, seafood freezers, and commercial refrigeration equipment.
Superior Anti-Icing and Defrosting Performance
Cold Room Door Heater Cable is a core component designed to solve the icing and frosting problems of cold storage doors, with outstanding anti-icing and defrosting capabilities. It adopts a professional electric heating structure, which can generate stable and uniform heat along the entire length of the cable. This heat is precisely transmitted to the door frame and door edge of the cold storage, effectively raising the local temperature to above the freezing point, completely preventing the formation of ice and frost on the door gap, and avoiding the problem of door jamming or poor sealing caused by ice accumulation. Unlike traditional defrosting methods, this cable provides continuous and stable heat output, which can maintain the dryness and smoothness of the door surface for a long time, ensuring the normal opening and closing of the cold storage door and the stability of the internal low-temperature environment. At the same time, its targeted heating design avoids unnecessary heat loss, and can quickly eliminate existing frost layers while preventing new icing, greatly improving the operational efficiency of cold storage equipment.
High-Quality Material and Durable Construction
The product is manufactured with high-grade industrial materials, focusing on durability and reliability in harsh low-temperature environments. The core heating element is made of high-purity alloy resistance wire, which has excellent thermal stability and electrical conductivity, ensuring long-term stable heat generation without performance attenuation. The outer layer is wrapped with high-quality silicone rubber insulation material, which has outstanding cold resistance, high temperature resistance, and corrosion resistance. It can work normally in an ultra-low temperature environment of -60°C and withstand a high temperature of up to 200°C, adapting to the extreme temperature difference inside and outside the cold storage. This silicone jacket also has good mechanical strength, can resist extrusion, bending, and friction, and is not easy to crack or age, effectively protecting the internal heating core from damage.
Excellent Flexibility and Adaptability
Cold Room Door Heater Cable has excellent flexibility, which is a key feature to meet the installation needs of various cold storage doors. The heating element is composed of multiple thin resistance wires twisted together, which not only ensures the heating effect but also greatly improves the flexibility of the cable, making it easy to bend and lay along the complex shape of the door frame. It can perfectly fit different sizes, shapes, and types of cold storage doors, including sliding doors, swing doors, and hinged doors, and can adapt to various cold storage panel thicknesses. The product provides a variety of specifications and customization options, with a diameter generally ranging from 3mm to 5mm, and a length that can be cut freely according to actual needs (usually in 50cm increments). It also offers a variety of power options, such as 20W/m, 25W/m, 40W/m, etc., and can be matched with 220V or 230V standard industrial voltage, which can meet the heating needs of cold storage doors of different sizes and temperature levels. This high adaptability allows the cable to be widely used in various cold storage scenarios, from small commercial freezers to large-scale logistics cold storage and food processing cold storage.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
|
Product Name |
Silicone Rubber Heating Wire / Defrost Cable |
|||
| Conductor Material |
|
|||
| Insulation Material |
Silicone Rubber (Optional: Fiberglass Braid for extra protection) |
|||
| Voltage |
12V / 24V / 110V / 220V / 230V (Customizable) |
|||
| Power Output | Standard: 20W/m, 30W/m, 40W/m, 50W/m (Max: ~60W/m) | |||
| Temperature Range | -60°C to +200°C (-76°F to +392°F) | |||
| Wire Diameter | 2.5mm, 3.0mm, 4.0mm, or Flat Type | |||
| Waterproof Rating |
|
|||
| Cold Lead Length |
Standard 1000mm (or customized) |
|||
| Color |
|
|||
| Certifications |
CE, UL, RoHS, VDE |
|||
| Applications |
Defrosting refrigerators, cold rooms, drain pipes, door frames |
FAQ
-
What is a cold storage heating wire?
It is a flexible electrical heating element, typically insulated with silicone rubber, used to prevent ice buildup in cold environments like freezer door frames, drain pipes, and evaporator coils. -
What is the temperature range of your heating wire?
Our silicone heating wires are designed to operate effectively between -60°C and +200°C (-76°F to +392°F). -
What is the difference between Silicone and PVC heating wires?
Silicone is far superior for cold storage. It remains flexible and does not crack at sub-zero temperatures, whereas PVC can become brittle and break in extreme cold. -
Can I cut the heating wire to any length?
No. Most standard resistance heating wires have a fixed resistance per meter. Cutting them shortens the circuit, increases the current, and will cause the wire to burn out instantly. (Note: Only parallel constant wattage or self-regulating cables can be cut). -
What is the standard power output (Wattage)?
Common power densities range from 20W/m to 50W/m. 40W/m is the industry standard for drain pipes and door frames. -
Do you offer different voltages?
Yes. We can customize the voltage to 12V, 24V, 110V, 220V, or 380V depending on your power supply requirements. -
What is the diameter of the wire?
Standard diameters are roughly 2.5mm to 4.0mm. We also offer flat (ribbon) profiles for specific door seals. -
Does the wire come with a "cold tail" (non-heating lead)?
Yes. To ensure safety, the connection point usually includes a non-heating lead wire (cold tail) of 1 meter (or custom length) for connecting to the power source. -
Is the heating wire waterproof?
Yes, our silicone heating wires are rated IP67, meaning they are fully waterproof and can be submerged in water (ideal for drain pipes). -
What material is used for the conductor?
We use high-quality Nickel-Chromium (NiCr) or Copper-Nickel alloy for stable resistance and long service life.
-
Where should I install this heating wire?
Common spots include:-
Inside the drain pipe of a cold room air cooler.
-
Around the door frame of a walk-in freezer.
-
On the drip tray of the evaporator.
-
Around compressor crankcases.
-
-

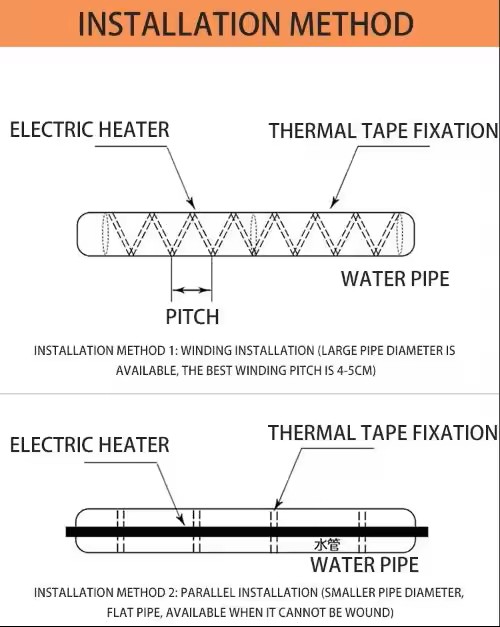

How do I attach the wire to a pipe?
We recommend using Aluminum Foil Tape. This secures the wire and helps spread the heat evenly across the pipe surface. -
Can I overlap the heating wire during installation?
Absolutely NOT. Overlapping the wire causes "hot spots" which will melt the insulation and cause failure or fire. The wire must always be spiraled or run straight without touching itself. -
Do I need a thermostat or temperature controller?
It is highly recommended. While some low-wattage wires can run continuously, using a thermostat saves energy and extends the life of the wire by turning it off when not needed. -
How do I install it inside a drain line?
Simply insert the wire into the pipe. The end of the wire must be sealed (waterproof cap). Ensure the heating part extends fully through the cold zone to the outside. -
Can this wire be used for floor heating in a cold room?
Standard door heater wire is too thin for floors. For floor frost heave protection, we recommend our heavier-duty armored heating cables or mating systems. -
Does the wire stay flexible in freezing conditions?
Yes, the silicone rubber insulation ensures the wire remains soft and pliable even at -50°C, making maintenance easy. -
What if the wire is too long for my pipe?
Do not cut it. You should spiral it slightly closer together (without overlapping) or let the excess hang outside the pipe in a safe area.
-
Is your heating wire safe for food storage environments?
Yes, silicone rubber is inert and odorless. It does not release harmful chemicals, making it safe for food cold chains. -
What certifications do your products have?
Our products are manufactured according to CE, UL, and RoHS standards. -
How do you prevent the connection joint from failing?
We use high-pressure molding to bond the heating wire and the cold lead. This creates a completely waterproof, integrated seal that resists moisture ingress. -
What happens if the wire gets damaged?
If the insulation is cut or the wire is broken, it must be replaced immediately to prevent short circuits or electric shocks. -
Is there a risk of fire?
Only if installed incorrectly (e.g., overlapping or wrong voltage). When installed correctly with a fuse and thermostat, they are extremely safe. -
How long is the lifespan of the wire?
Under normal usage conditions, high-quality silicone heating wires can last for 5 to 10 years. -
Can it withstand chemical cleaning agents?
Silicone is resistant to most mild cleaning agents, but harsh acids or solvents should be avoided.
-
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ is usually 100 pieces per specification, but we accept smaller trial orders for testing. -
Can you print my brand logo on the wire?
Yes, we offer OEM services. We can print your logo, voltage, and wattage specifications directly on the insulation or the packaging label. -
What information do I need to provide for a quote?
Please provide:-
Voltage (e.g., 220V)
-
Total Power or Power per meter (e.g., 40W/m)
-
Total Length (heating length + cold tail length)
-
Application (Door or Drain?)
-
-
What is your standard lead time?
For standard orders, production takes 7-14 days. Custom orders may take slightly longer. -
How is the product packaged?
Usually in individual PE bags, then packed in master cartons. We can also provide custom retail boxes with barcodes. -
Can I get a free sample?
Yes, we provide free samples for stock items. You only need to cover the shipping cost. -
Do you ship internationally?
Yes, we export globally via sea (LCL/FCL), air cargo, or express couriers (DHL/FedEx/UPS). -
What payment terms do you accept?
We accept T/T (Bank Transfer), L/C, PayPal (for samples), and Western Union. -
Can you customize the plug?
Yes, we can attach standard plugs (EU, US, UK, AU) to the cold tail upon request.
