Floor Radiant Heating For Cold Room
Structural Stability and Freeze Protection
Floor radiant heating systems for cold rooms are purpose-built to defend floor structures against low-temperature damage. They maintain consistent floor surface temperatures to stop frost heave, cracking, and deformation caused by frozen soil or moisture expansion. The heating elements are embedded firmly within concrete or floor layers to create a stable thermal layer that supports heavy loads from pallets, forklifts, and stored goods. Uniform heat distribution avoids local overheating or cold spots, preserving flatness and structural integrity over decades of use. This design greatly extends the service life of cold room floors and lowers long-term maintenance costs linked to structural repair.
High Energy Efficiency and Low Operating Cost
These systems use radiant heat transfer instead of forced air, directing energy to warm the floor and stored items rather than wasting heat on air movement. Heat rises gently from the ground to create a stable thermal environment with minimal temperature stratification, so less energy is needed to hold target temperatures. High-efficiency heating cables or tubes convert energy effectively with low standby loss. Smart temperature controls let users set precise heating schedules to match operational hours, avoiding unnecessary power use. Compared with traditional air heating, floor radiant heating cuts energy consumption significantly while keeping stable temperatures, supporting sustainable and cost-effective cold storage management.
Precise Temperature Control and Uniform Heating
Advanced digital thermostats and temperature sensors deliver real-time monitoring and automatic adjustment for tight temperature tolerance. The system responds quickly to changes in external temperature or door opening frequency to maintain consistent conditions. Heating elements are laid out evenly across the floor to ensure every corner receives balanced warmth, eliminating uneven cooling or local freezing. Even heat distribution protects temperature-sensitive goods from damage and supports compliance with cold chain quality standards. This uniform thermal field also improves working conditions for staff by reducing cold stress in high-use areas.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
|
Product Name |

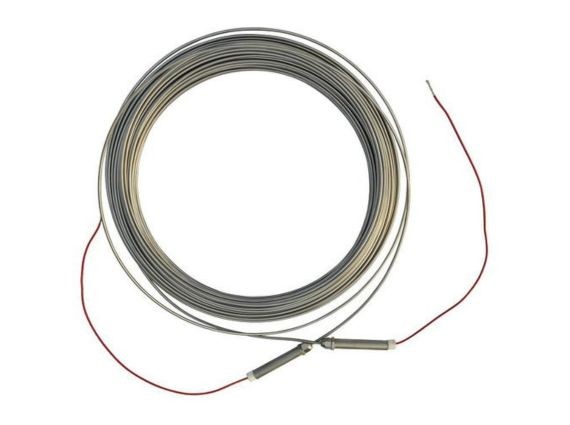

Silicone Rubber Heating Wire / Defrost Cable |
|||
| Conductor Material |
|
|||
| Insulation Material |
Silicone Rubber (Optional: Fiberglass Braid for extra protection) |
|||
| Voltage |
12V / 24V / 110V / 220V / 230V (Customizable) |
|||
| Power Output | Standard: 20W/m, 30W/m, 40W/m, 50W/m (Max: ~60W/m) | |||
| Temperature Range | -60°C to +200°C (-76°F to +392°F) | |||
| Wire Diameter | 2.5mm, 3.0mm, 4.0mm, or Flat Type | |||
| Waterproof Rating |
|
|||
| Cold Lead Length |
Standard 1000mm (or customized) |
|||
| Color |
|
|||
| Certifications |
CE, UL, RoHS, VDE |
|||
| Applications |
Defrosting refrigerators, cold rooms, drain pipes, door frames |
FAQ
-
What is a cold storage heating wire?
It is a flexible electrical heating element, typically insulated with silicone rubber, used to prevent ice buildup in cold environments like freezer door frames, drain pipes, and evaporator coils. -
What is the temperature range of your heating wire?
Our silicone heating wires are designed to operate effectively between -60°C and +200°C (-76°F to +392°F). -
What is the difference between Silicone and PVC heating wires?
Silicone is far superior for cold storage. It remains flexible and does not crack at sub-zero temperatures, whereas PVC can become brittle and break in extreme cold. -
Can I cut the heating wire to any length?
No. Most standard resistance heating wires have a fixed resistance per meter. Cutting them shortens the circuit, increases the current, and will cause the wire to burn out instantly. (Note: Only parallel constant wattage or self-regulating cables can be cut). -
What is the standard power output (Wattage)?
Common power densities range from 20W/m to 50W/m. 40W/m is the industry standard for drain pipes and door frames. -
Do you offer different voltages?
Yes. We can customize the voltage to 12V, 24V, 110V, 220V, or 380V depending on your power supply requirements. -
What is the diameter of the wire?
Standard diameters are roughly 2.5mm to 4.0mm. We also offer flat (ribbon) profiles for specific door seals. -
Does the wire come with a "cold tail" (non-heating lead)?
Yes. To ensure safety, the connection point usually includes a non-heating lead wire (cold tail) of 1 meter (or custom length) for connecting to the power source. -
Is the heating wire waterproof?
Yes, our silicone heating wires are rated IP67, meaning they are fully waterproof and can be submerged in water (ideal for drain pipes). -
What material is used for the conductor?
We use high-quality Nickel-Chromium (NiCr) or Copper-Nickel alloy for stable resistance and long service life.
-
Where should I install this heating wire?
Common spots include:-
Inside the drain pipe of a cold room air cooler.
-
Around the door frame of a walk-in freezer.
-
On the drip tray of the evaporator.
-
Around compressor crankcases.
-
-
How do I attach the wire to a pipe?
We recommend using Aluminum Foil Tape. This secures the wire and helps spread the heat evenly across the pipe surface. -
Can I overlap the heating wire during installation?
Absolutely NOT. Overlapping the wire causes "hot spots" which will melt the insulation and cause failure or fire. The wire must always be spiraled or run straight without touching itself. -
Do I need a thermostat or temperature controller?
It is highly recommended. While some low-wattage wires can run continuously, using a thermostat saves energy and extends the life of the wire by turning it off when not needed. -
How do I install it inside a drain line?
Simply insert the wire into the pipe. The end of the wire must be sealed (waterproof cap). Ensure the heating part extends fully through the cold zone to the outside. -
Can this wire be used for floor heating in a cold room?
Standard door heater wire is too thin for floors. For floor frost heave protection, we recommend our heavier-duty armored heating cables or mating systems. -
Does the wire stay flexible in freezing conditions?
Yes, the silicone rubber insulation ensures the wire remains soft and pliable even at -50°C, making maintenance easy. -
What if the wire is too long for my pipe?
Do not cut it. You should spiral it slightly closer together (without overlapping) or let the excess hang outside the pipe in a safe area.
-
Is your heating wire safe for food storage environments?
Yes, silicone rubber is inert and odorless. It does not release harmful chemicals, making it safe for food cold chains. -
What certifications do your products have?
Our products are manufactured according to CE, UL, and RoHS standards. -
How do you prevent the connection joint from failing?
We use high-pressure molding to bond the heating wire and the cold lead. This creates a completely waterproof, integrated seal that resists moisture ingress. -
What happens if the wire gets damaged?
If the insulation is cut or the wire is broken, it must be replaced immediately to prevent short circuits or electric shocks. -
Is there a risk of fire?
Only if installed incorrectly (e.g., overlapping or wrong voltage). When installed correctly with a fuse and thermostat, they are extremely safe. -
How long is the lifespan of the wire?
Under normal usage conditions, high-quality silicone heating wires can last for 5 to 10 years. -
Can it withstand chemical cleaning agents?
Silicone is resistant to most mild cleaning agents, but harsh acids or solvents should be avoided.
-
What is the Minimum Order Quantity (MOQ)?
Our standard MOQ is usually 100 pieces per specification, but we accept smaller trial orders for testing. -
Can you print my brand logo on the wire?
Yes, we offer OEM services. We can print your logo, voltage, and wattage specifications directly on the insulation or the packaging label. -
What information do I need to provide for a quote?
Please provide:-
Voltage (e.g., 220V)
-
Total Power or Power per meter (e.g., 40W/m)
-
Total Length (heating length + cold tail length)
-
Application (Door or Drain?)
-
-
What is your standard lead time?
For standard orders, production takes 7-14 days. Custom orders may take slightly longer. -
How is the product packaged?
Usually in individual PE bags, then packed in master cartons. We can also provide custom retail boxes with barcodes. -
Can I get a free sample?
Yes, we provide free samples for stock items. You only need to cover the shipping cost. -
Do you ship internationally?
Yes, we export globally via sea (LCL/FCL), air cargo, or express couriers (DHL/FedEx/UPS). -
What payment terms do you accept?
We accept T/T (Bank Transfer), L/C, PayPal (for samples), and Western Union. -
Can you customize the plug?
Yes, we can attach standard plugs (EU, US, UK, AU) to the cold tail upon request.
