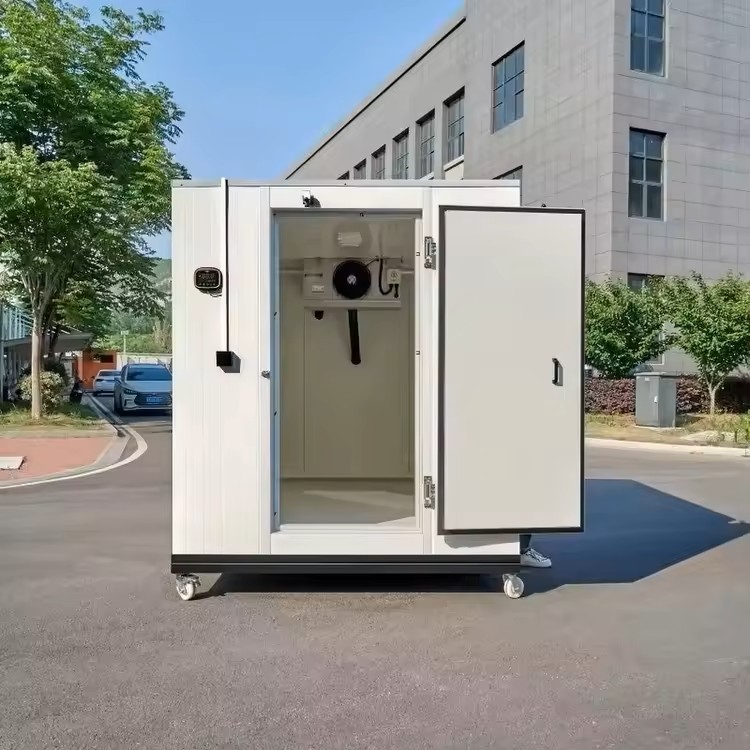

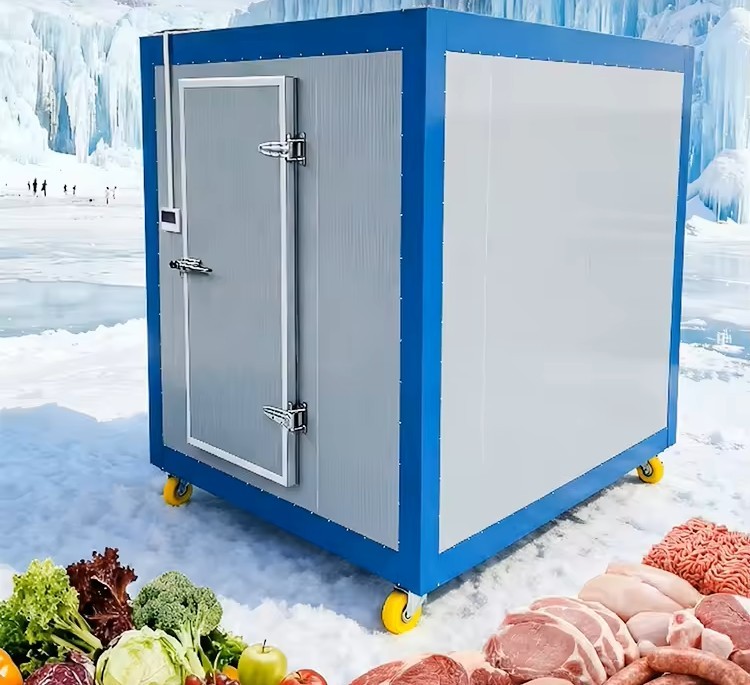

Fruit And Vegetable Mobile Cold Room
Description of Fruit And Vegetable Mobile Cold Room
A cold storage chamber constitutes a specialised warehousing facility integrating high-efficiency thermal insulation structures with precision refrigeration technology. It employs high-density polyurethane sandwich panels to construct an airtight space that blocks external heat ingress, whilst utilising a mechanical refrigeration system (compressor, condenser, and evaporator) to continuously remove internal thermal loads. This creates and maintains a constant low-temperature environment (typically encompassing fresh-keeping or freezing temperature zones) and specific humidity conditions within the enclosed space. Its core purpose lies in employing physical cooling methods to inhibit microbial proliferation, reduce enzymatic activity, or slow biochemical reaction rates. This maximises the shelf life and economic value of heat-sensitive products such as foodstuffs, pharmaceuticals, and chemical raw materials, serving as critical infrastructure within modern cold chain logistics systems to safeguard product quality.
Core characteristics of Fruit And Vegetable Mobile Cold Room
Structure of the storage facility and high-efficiency insulation
True Mobility: Heavy-duty swivel casters (with locks) allow easy movement across smooth floors. Rearrange your storage layout instantly.

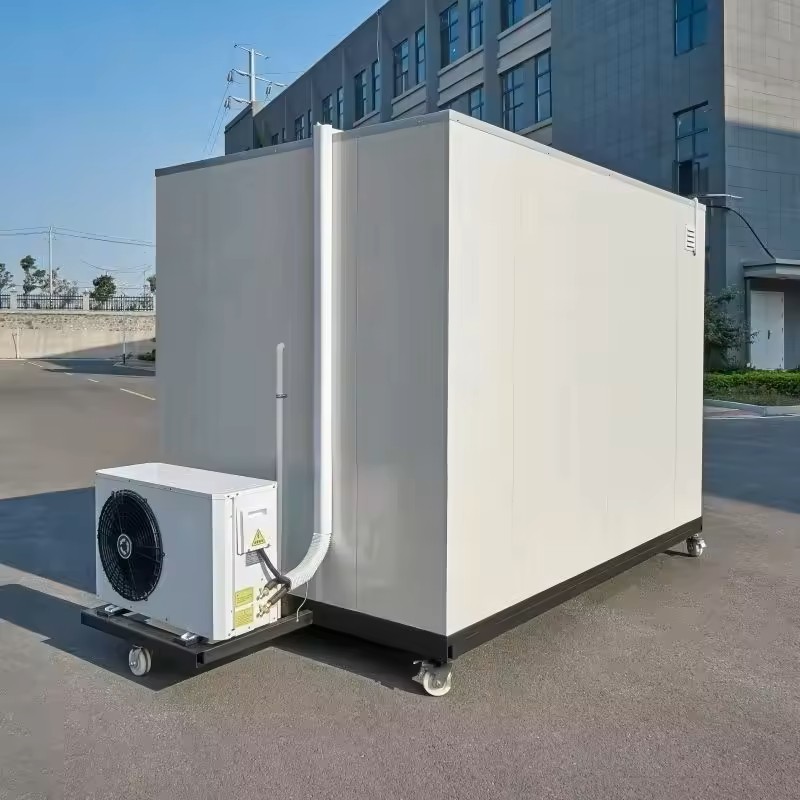

All-in-One Refrigeration: Features a powerful, pre-charged side-mounted monoblock unit. Just plug it into a standard power outlet.
Modular Build: High-density polyurethane insulated panels lock together tightly for maximum thermal efficiency.

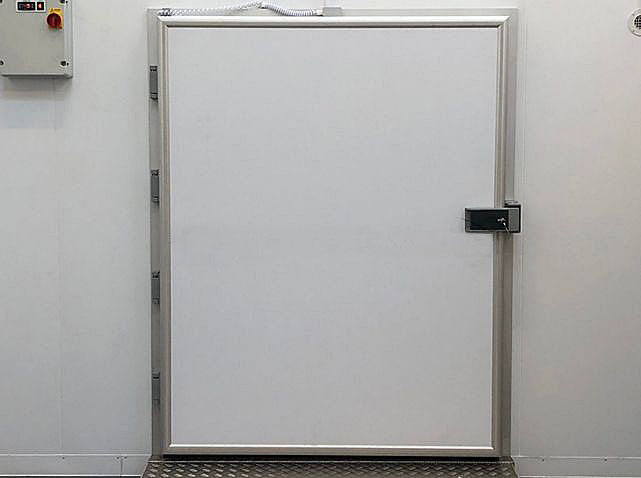

Professional access control and sealing systems

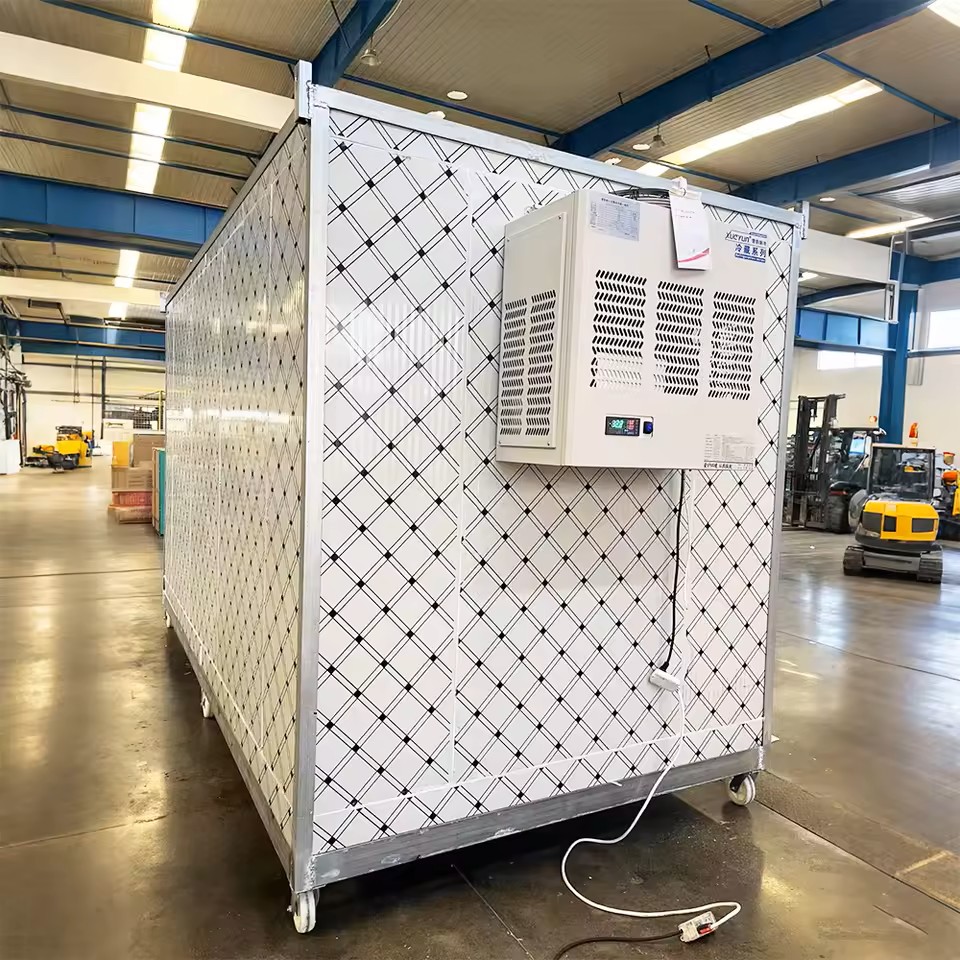

Space-Saving Design: The side-mounted cooling unit maximizes internal storage space compared to ceiling units.
Emergency Ready: Quick to deploy in case of main equipment failure.
Compact Footprint: Designed to fit through standard double doors or into tight back-of-house areas.
Powerful and precise cooling system
Space-Saving Design: The side-mounted cooling unit maximizes internal storage space compared to ceiling units.
Emergency Ready: Quick to deploy in case of main equipment failure.
Compact Footprint: Designed to fit through standard double doors or into tight back-of-house areas.
Intelligent Control and the Internet of Things

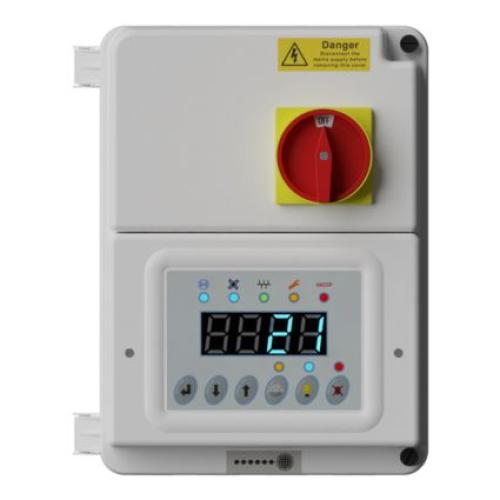

Precise Control: Digital temperature controller for maintaining exact conditions for sensitive goods.
Professional Appearance: Clean white finish that looks professional in customer-facing environments.
Low Noise Operation: The modern monoblock unit is quieter than traditional split systems, suitable for indoor use.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
| Product Type |
Fruit And Vegetable Mobile Cold Room |
|
Structure |
Assembled |
|
Usage |
Meat, Fish, Food, Fruit, Chicken, Vegetables |
|
Certification |
RoHS, ISO, CE |
|
Condition |
New |
|
Cold Room Panels |
PU Foam Core Sandwich Panel/PlR (Polyisocyanurate)Foam Core Sandwich Panel |
|
Surface Treatment |
Color Steel/Stainless Steel/Stucco Embossed Aluminum |
|
Floor |
PU Panel / Concrete with XPS / Checker Plate |
|
Refrigeration System |
New Generation Smart Cooling System |
|
Compressor |
Bitzer |
|
Evaporator |
Air Cooled (Ceiling Mounted, Floor Mounted) |
|
Energy Effciency |
Grade l |
|
Service Door |
Customized |
|
Product Name |
Movable Portable Cold Room for Food and Drug Trans |
|
Specification |
Customized |
Frequently Asked Questions (FAQs)
1.What exactly is this "mobile cold room"?
It is a small, insulated walk-in storage room fitted with a plug-in refrigeration unit and heavy-duty caster wheels, allowing it to be moved around a facility or event site.
2.Can this unit be used as a freezer?
Yes, depending on the model of the side-mounted monoblock unit chosen, it can be configured as either a chiller (positive temperature) or a freezer (negative temperature).
3.What sizes are available?
We offer several standard compact sizes (e.g., 2x2m, 2x3m). Custom sizes are available upon request depending on your needs.
4.Is it delivered assembled or flat-packed?
It can be delivered either way. Flat-packed is cheaper for shipping and allows entry through tight spaces, while assembled is instantly ready to use.
5.What kind of insulation is used?
We use high-density Polyurethane (PU) cam-lock panels, typically 75mm to 100mm thick, for superior thermal efficiency.
6. Can I tow this cold room behind a vehicle on the road?
No. The caster wheels are designed for moving the unit short distances on smooth, flat surfaces (like inside a warehouse or on concrete). It is NOT a road-legal trailer.
7. Can it be used outdoors?
Yes, but it requires a shelter or roof overhead to protect the refrigeration unit and electrical components from direct rain and harsh elements.
8. How many people are needed to move it?
On a smooth, level floor, 1-2 people can usually push the empty unit. If loaded, it becomes significantly heavier and harder to move.
9. Do the wheels lock?
Yes, the heavy-duty casters come with brakes/locks to keep the unit securely in place once positioned.
10. What kind of surface is required?
A flat, level, and smooth surface (concrete, tile, sturdy wood) is necessary for the wheels to function and for the door to align correctly.
11. What power supply is needed?
Most compact units run on standard single-phase household power (110V or 220V, depending on your region), making them "plug-and-play." Larger units may require 3-phase power.
12. Can I run this off a generator?
Yes, as long as the generator can handle the starting wattage surge of the compressor. Please check the unit's specs against your generator.
13. How does the refrigeration unit connect?
The side-mounted monoblock unit is pre-charged with refrigerant. You simply mount it into the pre-cut panel slot and plug it into a power outlet. No refrigeration technician is needed for installation.
14. Does it require a drainage connection?
The monoblock usually has an evaporator tray to handle condensation, but in humid conditions, an external drain line might be necessary.
15. Is there a floor inside?
Yes, these mobile units come with an insulated floor panel, often reinforced with aluminum checker plate for durability and anti-slip properties.
16. How much weight can the floor hold?
The floors are designed for foot traffic and hand-loading goods. They are generally not designed for heavy pallet jacks or forklifts inside.
17. Is the door lockable?
Yes, the hinged door comes with a latch that accepts a padlock, and usually includes an internal safety release mechanism.
18. How noisy is the unit?
Modern monoblock units are relatively quiet, similar to a large commercial refrigerator, but some compressor noise is expected.
19. Is it easy to clean?
Yes, the interior metal surfaces are smooth and hygienic, designed for easy wiping and cleaning.
