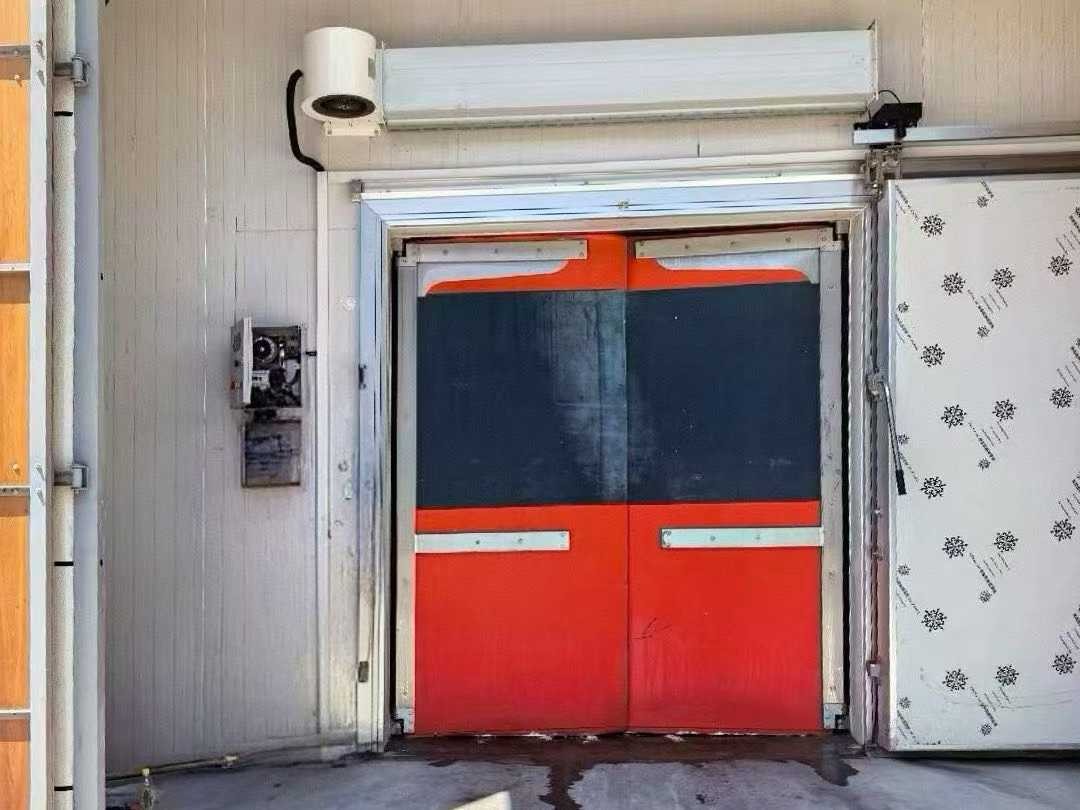

Heavy duty PVC Cold room swing door
Description of Heavy duty PVC Cold room swing door
Designed for smooth operation, it features an adjustable self‑closing mechanism for quiet, automatic return and a tight, full‑perimeter seal to prevent cold air leakage, humidity transfer, and dust ingress. Easy to clean, maintain, and install, this door complies with food‑safe standards and is ideal for walk‑in freezers, cold rooms, warehouses, and food production areas. Built to withstand demanding daily use, it offers dependable performance, low operational cost, and extended service life in professional cold chain applications.
Core characteristics of Heavy duty PVC Cold room swing door
Superior Material and Structural Durability
The core advantage of the heavy duty PVC cold room swing door lies in its ultra-strong material properties. The door panel adopts high-density, thickened PVC material that is specially formulated for cold environments. This material has excellent anti-aging, anti-corrosion and anti-deformation characteristics, and will not become brittle, crack or fade even under long-term low-temperature conditions. Unlike ordinary plastic or metal doors, PVC material can withstand repeated impacts, friction and daily wear, greatly extending the service life of the door body.
The overall structure uses a reinforced frame design, with built-in high-strength support keels to ensure that the door panel does not sag or deform during long-term use. The hinges and connecting parts are made of stainless steel or anti-rust alloy, which can resist moisture and corrosion in cold and humid environments. The door body can bear high-frequency opening and closing operations, and is not easy to loose or damage, fully meeting the heavy duty use needs of industrial sites.
Excellent Thermal Insulation and Energy Saving Performance
Thermal insulation is the core function of the cold room swing door, and this product performs outstandingly in this aspect. The interior of the door panel is filled with high-density thermal insulation foam material, which forms a complete thermal barrier and effectively blocks the convection and transmission of cold and hot air. It can maintain a stable temperature difference between the inside and outside of the cold room, prevent the loss of internal cooling capacity and reduce the running time and power consumption of refrigeration equipment.
The door edge is equipped with high-elasticity, low-temperature resistant sealing strips. When the door is closed, the sealing strip fits closely with the door frame, leaving no gaps, so as to achieve an airtight effect. Good airtightness can not only reduce energy loss, but also prevent external humid air, dust, insects and peculiar smells from entering the cold room, helping to keep the internal environment clean and hygienic. For food cold storage and pharmaceutical low-temperature warehouses, this performance directly guarantees product quality and safety.
Stable and Safe Low-Temperature Adaptability
The heavy duty PVC cold room swing door is specially designed for low-temperature environments and has strong adaptability to extreme temperatures. It can work normally in a wide temperature range, from high-temperature environments above zero to low-temperature environments below minus degrees, without affecting its opening and closing flexibility and structural stability. The sealing strip and hinge parts are made of low-temperature resistant materials, which will not harden or lose elasticity in a low-temperature environment, ensuring long-term effective use.
In terms of safety design, the door body has a smooth surface without sharp edges and corners, avoiding scratches and collisions during use. Many models are equipped with anti-pinch and anti-collision functions to protect the safety of personnel and equipment. The door opening and closing process is stable and noiseless, which improves the comfort of the working environment.
Flexible Operation and Convenient Maintenance
This cold room swing door adopts a humanized swing design, which is easy to open and close manually. The opening force is moderate, and both adults and handling equipment can easily push the door body. The opening angle is large, which is convenient for the passage of people and goods, improving the efficiency of logistics and handling. The door body can automatically return to the closed state under the action of the hinge or closing device, reducing the situation of forgetting to close the door and causing cooling loss.
At the same time, the heavy duty PVC cold room swing door is very convenient for daily maintenance. The PVC surface is smooth and not easy to absorb dust and oil, and can be cleaned directly with water or neutral detergent, keeping the door body clean and hygienic. The structure of the door is simple and reasonable, with few vulnerable parts. The hinges, sealing strips and other parts are easy to disassemble and replace, which reduces maintenance difficulty and cost. Users do not need professional tools and complex operations to complete daily inspection and upkeep.
Food Service: Restaurants, Cafeterias, Commercial Kitchens.
Retail: Supermarkets, Convenience Stores, Florists.
Industrial: Cold Storage Warehouses, Meat Processing Plants, Pharmaceutical Storage.
Medical: Vaccine Storage, Laboratory Cold Rooms.
| Product Type |
Heavy duty PVC Cold room swing door |
|
Door
Thickness |
Standard
40mm (1.57") / Heavy Duty 50mm (2") options available |
|
Surface
Material |
High-impact
Polyethylene (PE) / 304 Stainless Steel / ABS |
|
Insulation
Core |
High-density
injected Polyurethane (PU) foam (CFC-Free) |
|
Impact
Resistance |
Designed
for Hand Truck, Pallet Jack, and Forklift traffic |
|
Hinge
System |
Stainless
Steel V-Cam Gravity Hinges (180° swing) |
|
Window
/ Vision Panel |
Double-glazed
Polycarbonate or Acrylic with rubber molding (Standard size: 300x400mm) |
|
Gasket
/ Seals |
EPDM
rubber perimeter seals (Replaceable), Oil and Low-temp resistant |
|
Temperature Range |
-40°C to +50°C (-40°F to 122°F) |
|
Bumper
Strips |
Optional:
bumpers or flat impact plates (Heights: 300mm to 1000mm) |
|
Frame
Compatibility |
Mounts
to C-Channel Steel, Stainless Steel, or Wood jambs |
|
Operation |
Dual-acting
(swings in both directions), Self-closing |
|
Cleaning |
Washdown
compatible, resistant to mild acids and alkalis |
FAQ
1. What is a cold storage swing door (often called a "free door")?
A cold storage swing door is a double-acting door designed for high-traffic areas. It can open 180 degrees (in both directions) and closes automatically using gravity hinges. It is designed to separate different temperature zones while allowing people and forklifts to pass through quickly.
2. What are the other names for a cold storage swing door?
In the industry, these are also known as Traffic Doors, Impact Doors, Crash Doors, Double Acting Doors, or Service Doors.
3. What is the main difference between a swing door and a sliding cold room door?
A sliding door provides a tighter thermal seal and is meant for storage rooms that are not opened frequently. A swing (traffic) door is designed for processing areas or loading docks with high frequency of entry/exit, prioritizing speed and workflow efficiency over a hermetic seal.
4. Can forklifts drive directly through these doors?
Yes, provided the door is equipped with protective bumpers (kick plates). The doors are designed to absorb impact and swing open when pushed by a forklift or pallet jack.
5. Are cold storage swing doors suitable for deep freeze (-20°C) applications?
Generally, swing doors are best for chillers (0°C to 10°C), food processing rooms, and loading docks. For deep freezers, we recommend a heavy-duty sliding door with heater wires to prevent freezing shut, although some insulated traffic doors can be used in mild freezer applications.
6. Do these doors help with energy saving?
Yes. By closing automatically and immediately after a person passes through, they minimize the infiltration of warm air and humidity, significantly reducing the load on your refrigeration system compared to keeping a door propped open.
7. Are your doors compliant with food safety standards (HACCP/GMP)?
Yes. Our doors are designed with smooth surfaces, no visible screws (where bacteria can hide), and food-grade materials like #304 Stainless Steel, making them easy to clean and compliant with international food hygiene standards.
8. What is the standard thickness of the door panel?
Our standard impact traffic doors typically feature a panel thickness of 40mm, which provides a good balance between insulation and lightweight operation.
9. What insulation material is used inside the door?
We use high-density Polyurethane (PU) foam injected under high pressure. This provides excellent thermal insulation and structural strength.
10. What material is the door surface made of?
Customers can choose between 304 Stainless Steel (best for hygiene and durability) or Painted Galvanized Steel (cost-effective). We also offer ABS or PE facing for specific impact requirements.
11. How does the "Gravity Hinge" system work?
Unlike spring hinges that can wear out, a Gravity Hinge uses the weight of the door to close it. When the door is pushed open, it rises slightly; gravity then pulls it back to the closed center position. This system is extremely durable and virtually maintenance-free.
12. Can the door stay open if needed (Hold-Open feature)?
Yes. The hinge design allows the door to "dwell" or stay open when pushed past 90 degrees. This is useful during sustained loading periods.
13. Are the windows on the door shatterproof?
Yes. We use double-glazed acrylic or polycarbonate windows. They are designed to be shatter-resistant for safety in busy industrial environments.
14. What are the "Bumpers" or "Kick Plates" made of?
We use high-impact PE (Polyethylene) or PVC sheets. These are installed on the lower half of the door to protect the stainless steel panel from scratches and dents caused by carts and forklifts.
15. What type of seal is used around the door edges?
We use high-quality, tear-resistant rubber gaskets along the vertical edges to prevent air leakage. These gaskets are easily replaceable.
16. Can these doors be installed on sandwich panel walls?
Yes, but the wall opening requires reinforcement. We recommend installing a C-channel sub-frame (aluminum or steel) inside the panel opening to support the weight and movement of the door.
17. Do you offer single-leaf and double-leaf options?
Yes. For narrow openings (under 1.2m wide), we recommend a Single Leaf door. For wider openings (up to 2.4m or more), a Double Leaf door is required.
18. Can I customize the size of the window?
Yes, while we have standard window sizes, we can customize the vision panel size or shape based on your specific requirements.
19. How do I measure the opening for a swing door?
We need the Clean Opening Width and Clean Opening Height (finish-to-finish dimensions). If you have a sub-frame installed, please measure the inside of the frame.
20. Is the installation process difficult?
No, it is relatively straightforward. The door frame is mounted to the wall, and the door leaves drop onto the hinge pins. Detailed installation manuals and video guides are provided with every order.
21. How long is the warranty period?
We provide a standard 1-year warranty on the door panel and hardware against manufacturing defects.
22. Do the hinges require lubrication?
Our gravity hinges are designed to be self-lubricating or use nylon bearings, requiring very little maintenance. However, applying a food-safe grease once a year ensures smooth operation.
23. Are spare parts (gaskets, hinges) easily available?
Yes. We stock all necessary spare parts. Since gaskets are wear-and-tear items, we can include extra sets in your initial shipment upon request.
24. What happens if the door gets scratched?
If you choose the Stainless Steel finish, minor scratches can be buffed out. For deep impacts, the bumper plates are designed to take the hit, preserving the structural integrity of the door.
25. How do you package the doors for export to prevent damage?
We use a triple-layer protection method: PE film wrapping + foam corner guards + fumigation-free plywood cases. This ensures the doors arrive scratch-free.
26. What is the Minimum Order Quantity (MOQ)?
Our MOQ is 1 set. We are happy to support both small sample orders and large project bulk orders.
27. What is the production lead time?
For standard sizes, production takes 7-10 days. For custom sizes or large quantities, it typically takes 15-20 days.
28. Can you print our company logo on the packaging?
Yes, we offer OEM services. We can label the packaging with your brand name, logo, and project reference numbers.
