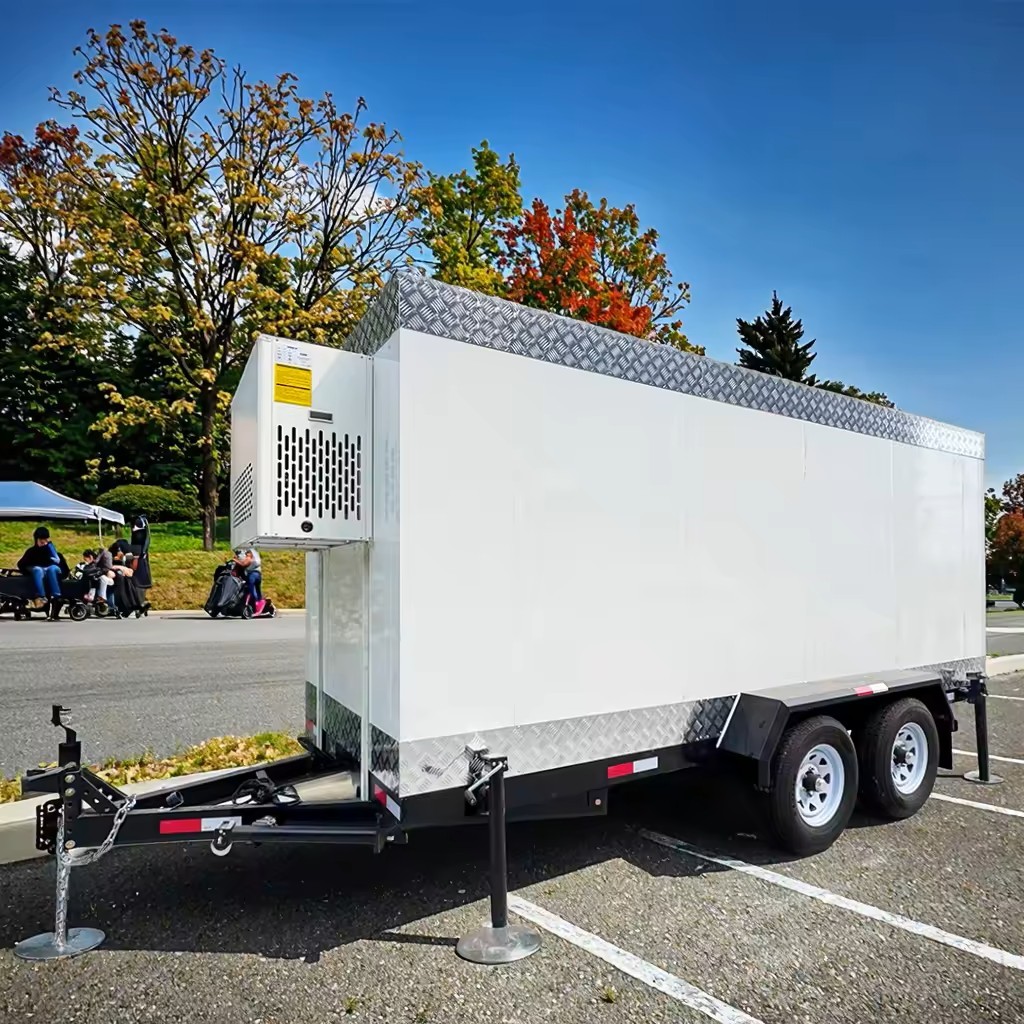

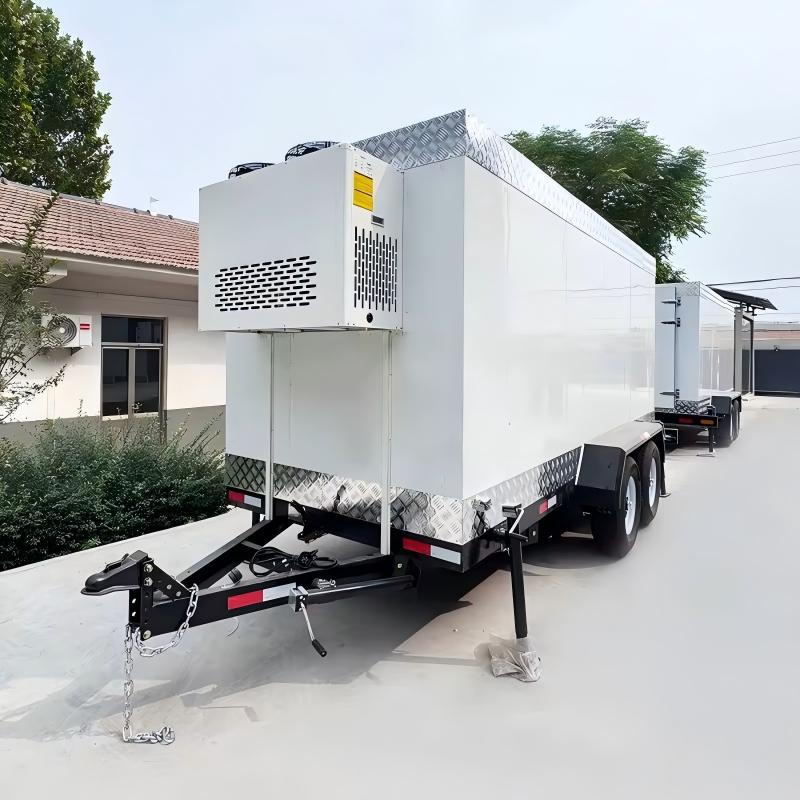

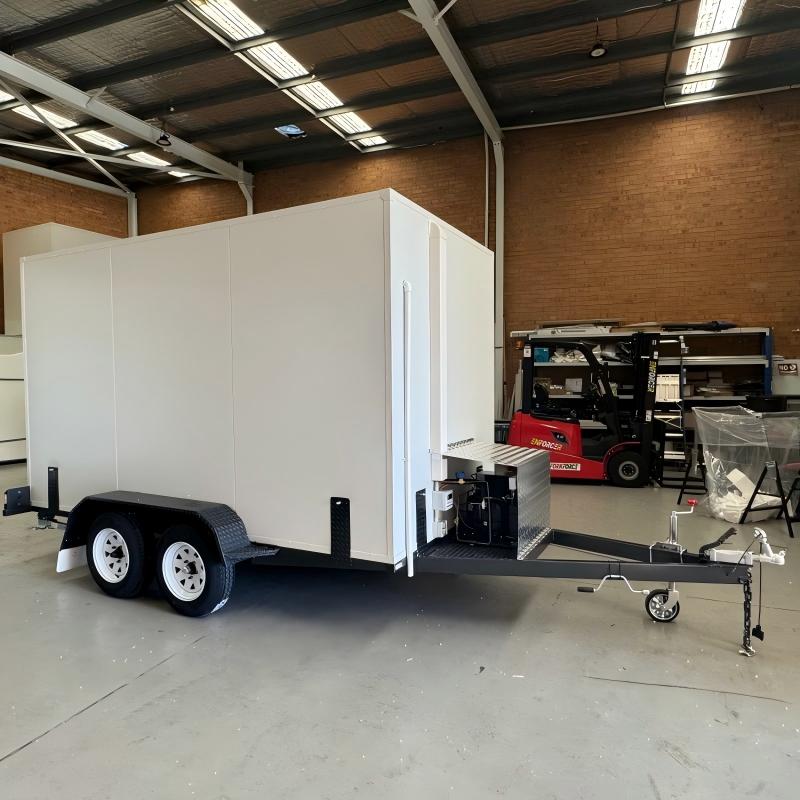

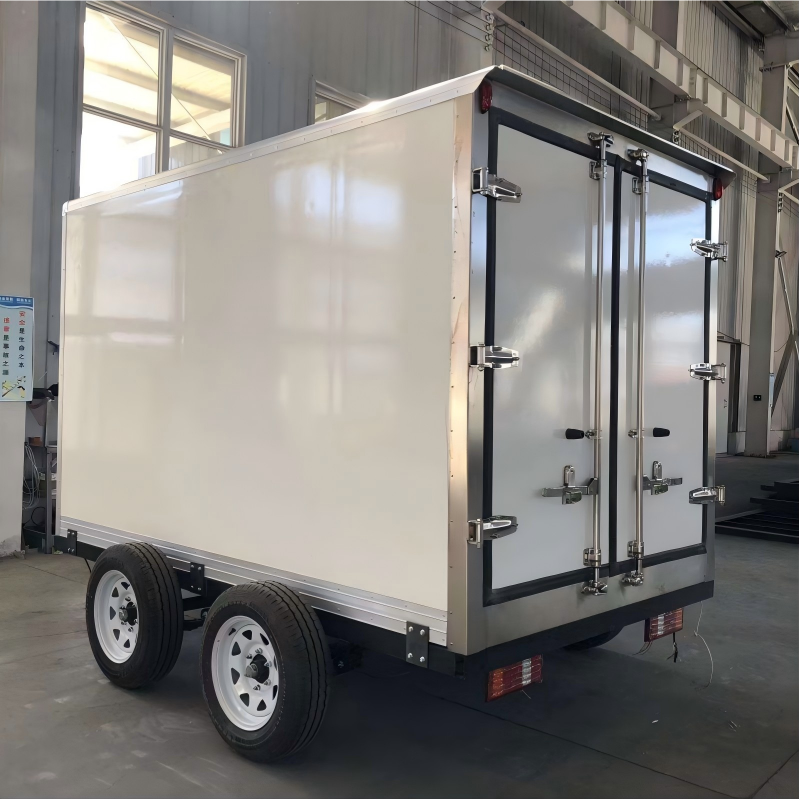

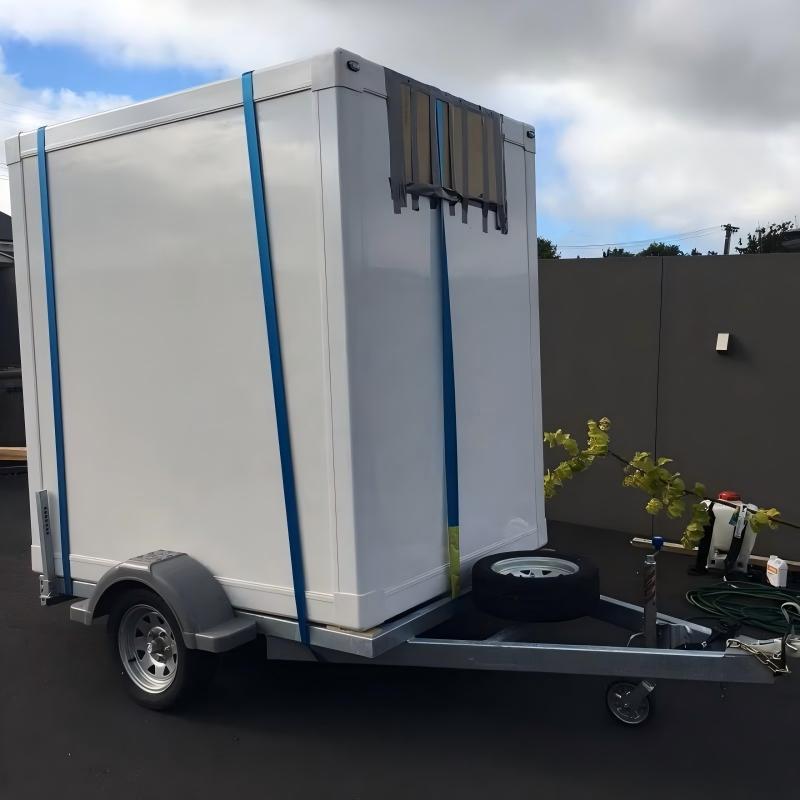

Chiller Trailer Container Cold Room
Description of Chiller Trailer Container Cold Room
Our chiller trailer container cold room combines mobility, reliability, and efficient temperature control for on‑demand refrigerated storage. Built with durable, insulated container structure, it maintains stable low temperatures for fresh produce, seafood, pharmaceuticals, and other temperature‑sensitive goods. Featuring easy transportation, quick setup, and stable cooling performance, this mobile cold room is ideal for outdoor events, logistics hubs, temporary storage, and remote site operations. With energy‑efficient design and user‑friendly controls, it ensures consistent cooling, long‑hour operation, and strong protection for your cargo anytime, anywhere.
Core characteristics of Chiller Trailer Container Cold Room
Full Mobility & Trailer‑Mounted Flexibility
As a trailer‑integrated unit, this cold room delivers unmatched relocation convenience without permanent construction. It comes standard with a heavy‑duty chassis, mechanical or air suspension, braking system, support legs, and towing coupling, enabling fast hookup to trucks or tractors for short‑ or long‑distance movement. Once on site, support legs stabilize the unit for safe loading, unloading, and stationary storage. It can be deployed directly at farms, warehouses, distribution centers, outdoor venues, or disaster areas, eliminating the cost and delay of fixed cold‑room construction. Its compact footprint and road‑legal dimensions allow access to urban, suburban, and remote locations alike, turning any location into a temporary or semi‑permanent cold chain node.
Robust & Standardized Container Structure
Built to ISO container dimensions (commonly 10ft, 20ft, 40ft), the unit uses corrosion‑resistant galvanized steel or stainless steel for the outer shell and food‑grade stainless steel or fiberglass for the interior lining. The structure is reinforced to withstand heavy cargo loads, forklift traffic, and long‑term outdoor use, with strong resistance to impact, deformation, and weathering. Forklift pockets and lifting points are integrated for flexible handling via forklift or crane when needed. The modular, all‑welded construction ensures airtightness and structural integrity, maintaining stable performance in high or low temperatures, humidity, rain, snow, and coastal salt‑spray environments.
Premium Thermal Insulation Performance
The walls, ceiling, floor, and door are constructed with high‑density polyurethane (PU) foam sandwich panels, typically 75mm to 150mm thick, with ultra‑low thermal conductivity around 0.022–0.028 W/(m·K). This insulation drastically reduces heat exchange between interior and exterior, cutting energy consumption and maintaining steady temperatures. The floor is additionally reinforced with insulated, anti‑slip, and load‑bearing layers to resist pallet and forklift wear while preserving cooling efficiency. Seamless insulation layout and multi‑layer door gaskets prevent cold air leakage, making the unit far more efficient than standard insulated boxes and ideal for long‑term unattended operation.
High‑Efficiency & Precise Refrigeration System
Equipped with industrial‑grade scroll or piston compressors and branded independent refrigeration units, the system supports broad temperature control ranging from -25°C to +25°C, covering chilling (0°C to +10°C), freezing (-18°C to -25°C), and constant‑temperature storage. Many models use inverter technology to adjust cooling capacity dynamically, stabilizing temperatures within ±1°C and reducing energy spikes from repeated starts and stops. Forced air circulation and optimized ducting ensure uniform temperature distribution throughout the chamber, avoiding hotspots or freezing damage to goods. An intelligent auto‑defrost function prevents ice buildup on evaporators, sustaining stable cooling efficiency in high‑humidity conditions.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
| Product Type |
Chiller Trailer Container Cold Room |
|
Applicable Industries |
Restaurant, Retail, Food Shop, Food & Beverage Shops |
|
After Warranty Service |
Video technical support, Online support |
|
Voltage |
110V/220V/380V |
|
Power |
5-20 kW |
|
Refrigeration Capacity |
10-50 kW (34,000-170,000 BTU/h) |
|
Temperature Range |
-20°C to 10°C (-4°F to 50°F) |
|
Material |
Galvanized Steel |
|
Floor |
Non-slip Flooring (aluminum) with Drain |
|
Wheels |
2/4 Wheels |
|
Evaporator |
Air Cooled (Ceiling Mounted, Floor Mounted) |
|
Certification |
CE,ISO |
|
Service Door |
Customized |
|
Insulation Thickness |
50mm (2in) |
|
Specification |
Customized |
Frequently Asked Questions (FAQ)
1. What is a mobile refrigerated trailer?
A mobile refrigerated trailer (often called a "reefer trailer" or "cool room on wheels") is a towable insulated unit equipped with a refrigeration system. It is designed to transport or store temperature-sensitive goods like food, beverages, flowers, and pharmaceuticals.
2. Can this trailer be used as both a cooler and a freezer?
Yes, most of our units are equipped with adjustable refrigeration systems. You can set the temperature to keep items chilled (0°C to 4°C) or deep-frozen (-18°C or lower), depending on your needs.
3. What are the main applications for this trailer?
Common uses include outdoor catering events, emergency backup for restaurants, transporting fresh produce for farmers, game meat storage for hunters, floral delivery, and cold chain logistics for medical supplies.
4. Is the trailer suitable for long-distance travel?
Absolutely. The trailer is built on a heavy-duty chassis with a suspension system designed for highway speeds and long-distance transport.
5. How is the refrigeration unit powered?
The unit typically runs on standard single-phase AC power (110V or 220V, depending on your region). It can be plugged into a standard wall outlet or powered by a portable generator.
6. Does the refrigeration unit run while the vehicle is towing it?
Standard electric units require a generator mounted on the trailer tongue or in the towing vehicle to run while in motion. Alternatively, the high-quality insulation keeps goods cold for shorter trips without power.
7. How long does it take to reach the desired temperature?
An empty trailer typically pulls down to 0°C (32°F) within 30 to 60 minutes, depending on the ambient temperature and the power of the cooling unit.
8. How much power does the unit consume?
Power consumption varies by model, but most compact units are energy-efficient, drawing between 10 to 15 amps during startup and significantly less while running.
9. Is there a backup power option?
We recommend using a portable generator (usually 3.5kW or higher) as a backup power source if shore power is unavailable.
10. What kind of vehicle do I need to tow this trailer?
Our single-axle compact models are lightweight and can be towed by most standard SUVs, pickup trucks, and even some sedans. Please check your vehicle's towing capacity against the trailer's Gross Vehicle Weight (GVW).
11. Do I need a special driver’s license to tow this?
For most small to medium-sized trailers (under 3,500kg or 7,700lbs), a standard driver’s license is sufficient. However, regulations vary by country and state, so please check local laws.
12. What type of connection does the trailer lights use?
We install standard 7-pin (round) or flat connectors adaptable to most vehicles.
13. What is the payload capacity?
Payload depends on the specific axle rating. A standard single-axle unit typically carries between 500kg to 1,000kg (1,100lbs to 2,200lbs). Heavy-duty options are available.
14. What material is the insulation made of?
We use high-density Polyurethane (PU) sandwich panels (typically 75mm to 100mm thick), which offer superior thermal efficiency compared to Styrofoam.
15. Is the floor slip-resistant?
Yes, the floor is typically finished with checkered aluminum plate (diamond plate) or an anti-slip resin coating to ensure safety during loading and unloading.
16. Does it come with internal shelving?
Shelving is optional. We can install stainless steel or food-grade wire racking, or leave the space open for pallet storage.
17. Is the interior light waterproof?
Yes, the trailer comes equipped with an IP65-rated LED internal light for safe operation in wet and cold conditions.
18. Are the doors lockable?
Yes, the rear doors feature heavy-duty stainless steel cam-locks that are fully lockable to secure your valuable cargo.
19. Is there an emergency release inside?
Safety is a priority. All our walk-in trailers feature an internal safety release mechanism, allowing anyone trapped inside to open the door easily.
20. How do I clean the interior?
The interior panels are seamless and water-resistant. You can wash them down with mild detergent and water. A floor drain is usually included for easy washout.
21. How often does the refrigeration unit need servicing?
We recommend a basic check-up (cleaning condenser coils, checking refrigerant levels) once a year or every 6 months if used heavily.
22. What should I do if the unit stops working?
Check your power source and breakers first. If the issue persists, our units are made by major manufacturers (like Govi, KingClima, or Carrier), so parts and service technicians are widely available.
23. Can I customize the size or color?
Yes, we offer OEM/ODM services. We can customize dimensions, door placement, exterior wrap/branding, and chassis specifications.
24. What is the warranty period?
We typically offer a 1-year warranty on the trailer chassis and body, and a separate warranty (usually 1 year) from the refrigeration unit manufacturer.
25. Do you ship internationally?
Yes, we ship worldwide. Trailers can be shipped fully assembled (CBU) or in flat-pack (CKD) form to save on shipping costs.
