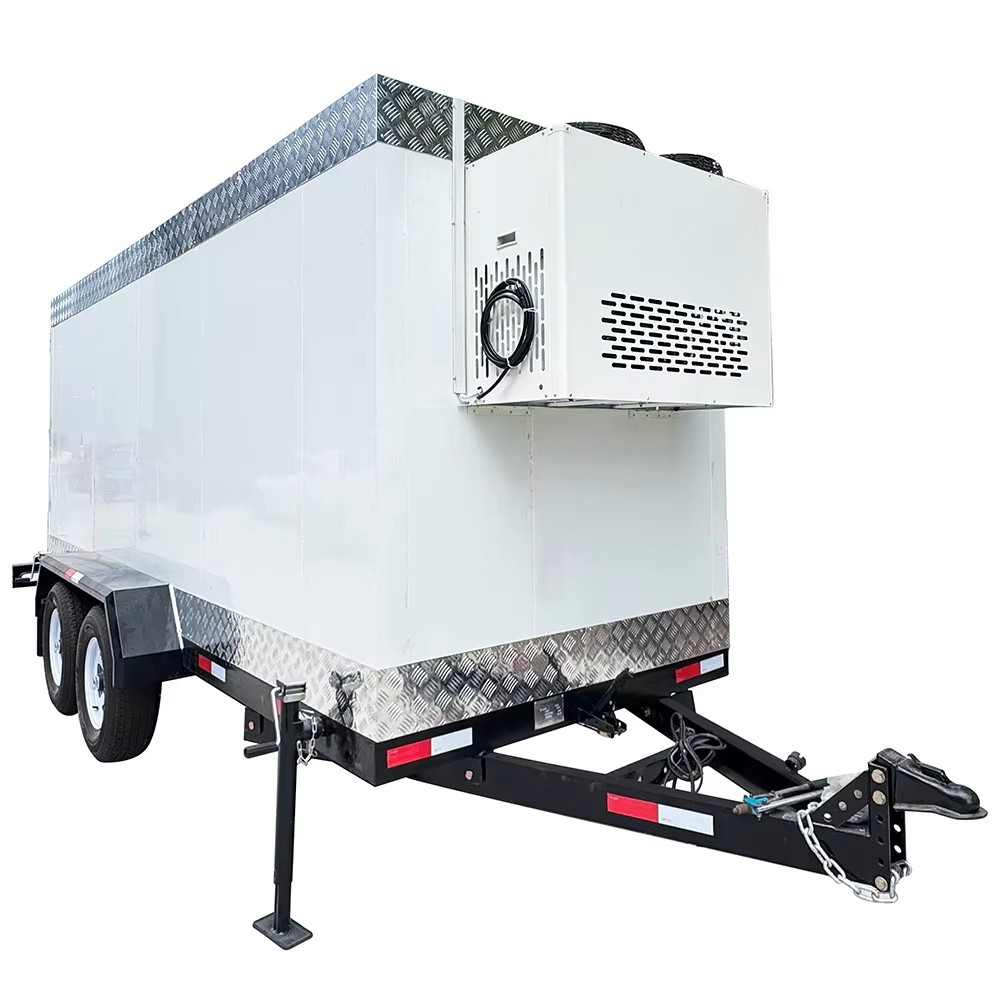

Customized Chiller Trailer Refrigeration Mobile Room
Description of Customized Chiller Trailer Refrigeration Mobile Room
A chiller trailer can be an important part of your business. So long as your product needs a chiller, then this is what you need. We make the chiller to be generally multipurpose. Once you have one product delivered, you can still have the other picked up with ease. This makes it a good pick for anyone who wants versatility.
How about affordability? We make the chiller trailer to be as affordable as possible. The idea is to ensure you do not have to spend so much to protect and preserve your produce. We also assure the buyers of getting the best value for money.
Those who might have any questions should expect to get the best answers from us. We recommend taking to us. We have a dedicated team that would help look into your needs for a chiller trailer and enjoy the resultant product.
Core characteristics of Customized Chiller Trailer Refrigeration Mobile Room
Fully Customizable Design for Diverse Scenarios
The product is built around a modular customization framework, allowing tailored configurations of dimensions, cooling capacity, temperature range, interior layout, and power supply to match industry‑specific demands. Sizes range from compact 6ft trailers to large 40ft integrated units, with internal volume adjustable from 5m³ to 60m³. Customers can select single-temperature or dual-temperature zones, fresh-keeping, refrigeration, freezing, or ultra‑low‑temperature modes. Interior fittings such as shelving, hanging rails, drain systems, air ducts, and partition walls can be added as needed. Power options include 220V single-phase, 380V three-phase, diesel generator set, or hybrid power, enabling operation in grid-connected, off-grid, and mobile environments. This high degree of customization makes it suitable for food cold chain, agricultural picking, medical refrigeration, industrial process cooling, outdoor events, and disaster relief.
High‑Performance Refrigeration System with Stable Cooling
Equipped with an industrial‑grade chiller unit and hermetic or semi‑hermetic compressors, the system delivers strong cooling capacity and rapid temperature pull‑down. It uses high‑efficiency evaporators and condensers with enhanced heat exchange tubes to improve energy efficiency. The temperature control range is wide, typically from +10°C down to -40°C, with precision adjustable in steps of 0.1°C to meet strict cooling requirements. It supports intelligent defrosting (electric, hot gas, or water defrosting) to maintain stable cooling in high‑humidity environments. The refrigeration cycle uses environmentally friendly refrigerants (R404A, R507, R134a, etc.), complying with international environmental protection standards while ensuring long‑term reliable operation.
Excellent Thermal Insulation and Air‑Tight Structure
The box body adopts high‑density polyurethane (PU) integral foaming sandwich panels, usually 80mm–150mm thick, with low thermal conductivity and excellent insulation performance. The panel surface can be stainless steel, aluminum alloy, or fiberglass reinforced plastic (FRP), featuring corrosion resistance, easy cleaning, and durability. The entire box adopts seamless welding and tight sealing design, equipped with high‑quality rubber gaskets to minimize cold air leakage and reduce energy consumption. The floor uses anti‑slip, load‑bearing insulated panels with drainage channels, suitable for heavy storage and easy cleaning. This structure maintains stable internal temperature for a long time even under high external temperature differences, greatly reducing operating costs.
Trailer‑Mounted Mobility and Quick Deployment
As a trailer‑mounted integrated unit, it can be towed by trucks, SUVs, or tractors, realizing point‑to‑point movement and on‑demand deployment. It does not require fixed infrastructure or on‑site construction, enabling immediate use upon arrival and connection to power. This mobility is ideal for temporary cold storage at farms, markets, construction sites, and outdoor venues. The chassis uses a heavy‑duty steel frame with professional axles, suspension, braking systems, and safety lights, complying with road transportation regulations to ensure safe towing even when fully loaded. The compact layout and reasonable weight distribution improve passability and stability.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
| Product Type |
Customized Chiller Trailer Refrigeration Mobile Room |
|
Applicable Industries |
Restaurant, Retail, Food Shop, Food & Beverage Shops |
|
After Warranty Service |
Video technical support, Online support |
|
Voltage |
110V/220V/380V |
|
Power |
5-20 kW |
|
Refrigeration Capacity |
10-50 kW (34,000-170,000 BTU/h) |
|
Temperature Range |
-20°C to 10°C (-4°F to 50°F) |
|
Material |
Galvanized Steel |
|
Floor |
Non-slip Flooring (aluminum) with Drain |
|
Wheels |
2/4 Wheels |
|
Evaporator |
Air Cooled (Ceiling Mounted, Floor Mounted) |
|
Certification |
CE,ISO |
|
Service Door |
Customized |
|
Insulation Thickness |
50mm (2in) |
|
Specification |
Customized |
Frequently Asked Questions (FAQ)
1. What is a mobile refrigerated trailer?
A mobile refrigerated trailer (often called a "reefer trailer" or "cool room on wheels") is a towable insulated unit equipped with a refrigeration system. It is designed to transport or store temperature-sensitive goods like food, beverages, flowers, and pharmaceuticals.
2. Can this trailer be used as both a cooler and a freezer?
Yes, most of our units are equipped with adjustable refrigeration systems. You can set the temperature to keep items chilled (0°C to 4°C) or deep-frozen (-18°C or lower), depending on your needs.
3. What are the main applications for this trailer?
Common uses include outdoor catering events, emergency backup for restaurants, transporting fresh produce for farmers, game meat storage for hunters, floral delivery, and cold chain logistics for medical supplies.
4. Is the trailer suitable for long-distance travel?
Absolutely. The trailer is built on a heavy-duty chassis with a suspension system designed for highway speeds and long-distance transport.
5. How is the refrigeration unit powered?
The unit typically runs on standard single-phase AC power (110V or 220V, depending on your region). It can be plugged into a standard wall outlet or powered by a portable generator.
6. Does the refrigeration unit run while the vehicle is towing it?
Standard electric units require a generator mounted on the trailer tongue or in the towing vehicle to run while in motion. Alternatively, the high-quality insulation keeps goods cold for shorter trips without power.
7. How long does it take to reach the desired temperature?
An empty trailer typically pulls down to 0°C (32°F) within 30 to 60 minutes, depending on the ambient temperature and the power of the cooling unit.
8. How much power does the unit consume?
Power consumption varies by model, but most compact units are energy-efficient, drawing between 10 to 15 amps during startup and significantly less while running.
9. Is there a backup power option?
We recommend using a portable generator (usually 3.5kW or higher) as a backup power source if shore power is unavailable.
10. What kind of vehicle do I need to tow this trailer?
Our single-axle compact models are lightweight and can be towed by most standard SUVs, pickup trucks, and even some sedans. Please check your vehicle's towing capacity against the trailer's Gross Vehicle Weight (GVW).
11. Do I need a special driver’s license to tow this?
For most small to medium-sized trailers (under 3,500kg or 7,700lbs), a standard driver’s license is sufficient. However, regulations vary by country and state, so please check local laws.
12. What type of connection does the trailer lights use?
We install standard 7-pin (round) or flat connectors adaptable to most vehicles.
13. What is the payload capacity?
Payload depends on the specific axle rating. A standard single-axle unit typically carries between 500kg to 1,000kg (1,100lbs to 2,200lbs). Heavy-duty options are available.
14. What material is the insulation made of?
We use high-density Polyurethane (PU) sandwich panels (typically 75mm to 100mm thick), which offer superior thermal efficiency compared to Styrofoam.
15. Is the floor slip-resistant?
Yes, the floor is typically finished with checkered aluminum plate (diamond plate) or an anti-slip resin coating to ensure safety during loading and unloading.
16. Does it come with internal shelving?
Shelving is optional. We can install stainless steel or food-grade wire racking, or leave the space open for pallet storage.
17. Is the interior light waterproof?
Yes, the trailer comes equipped with an IP65-rated LED internal light for safe operation in wet and cold conditions.
18. Are the doors lockable?

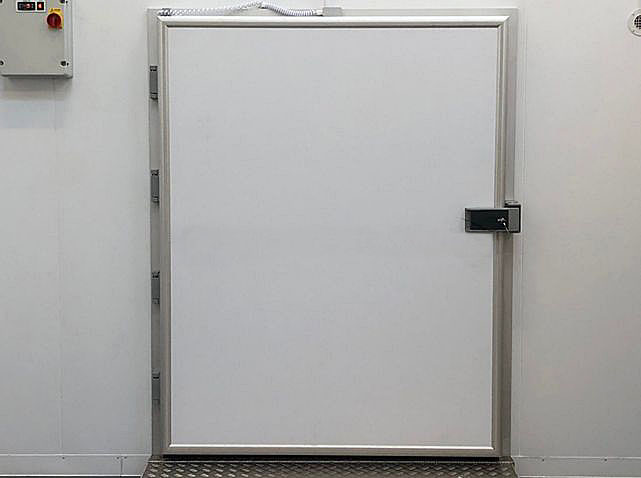

Yes, the rear doors feature heavy-duty stainless steel cam-locks that are fully lockable to secure your valuable cargo.
19. Is there an emergency release inside?
Safety is a priority. All our walk-in trailers feature an internal safety release mechanism, allowing anyone trapped inside to open the door easily.
20. How do I clean the interior?
The interior panels are seamless and water-resistant. You can wash them down with mild detergent and water. A floor drain is usually included for easy washout.
21. How often does the refrigeration unit need servicing?
We recommend a basic check-up (cleaning condenser coils, checking refrigerant levels) once a year or every 6 months if used heavily.
22. What should I do if the unit stops working?
Check your power source and breakers first. If the issue persists, our units are made by major manufacturers (like Govi, KingClima, or Carrier), so parts and service technicians are widely available.
23. Can I customize the size or color?
Yes, we offer OEM/ODM services. We can customize dimensions, door placement, exterior wrap/branding, and chassis specifications.
24. What is the warranty period?
We typically offer a 1-year warranty on the trailer chassis and body, and a separate warranty (usually 1 year) from the refrigeration unit manufacturer.
25. Do you ship internationally?
Yes, we ship worldwide. Trailers can be shipped fully assembled (CBU) or in flat-pack (CKD) form to save on shipping costs.
