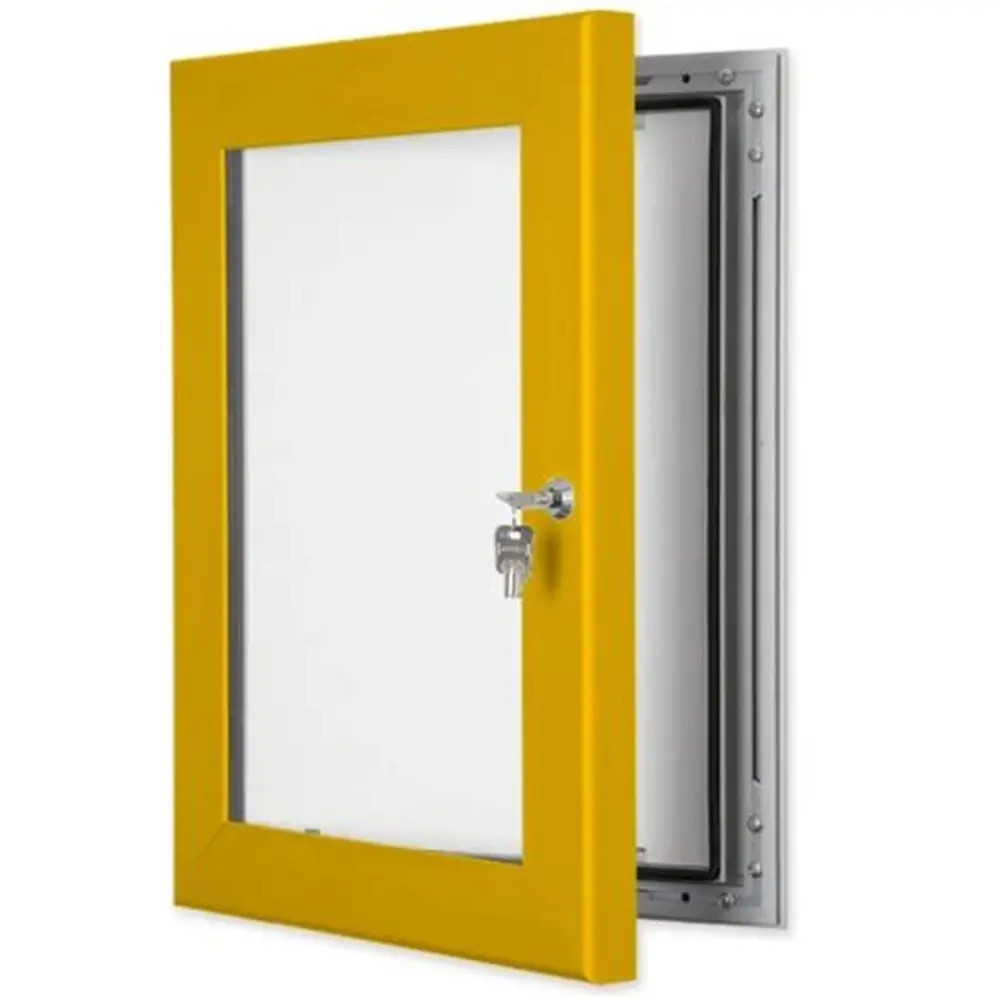

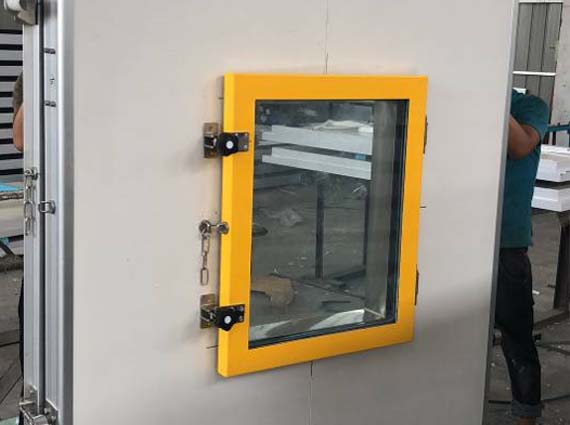

Cold storage window
Our cold storage window is a high-performance insulated viewing panel engineered for walk‑in coolers, freezers, and cold storage facilities. It combines robust construction, superior thermal efficiency, and crystal‑clear visibility to support safe, efficient, and low‑energy cold chain operations.
Built with double or triple‑pane tempered safety glass and a heat‑insulating spacer layer, it drastically reduces heat transfer, controls condensation, and maintains stable internal temperatures. An optional electric heating element ensures anti‑fog, frost‑free visibility even in ultra‑low‑temperature environments. The reinforced aluminum or PVC frame offers strong structural integrity, corrosion resistance, and long service life in harsh cooling conditions. A full‑perimeter sealing gasket blocks air leakage and boosts energy savings.
Superior Thermal Insulation and Energy Efficiency
Thermal performance is the foundational feature of cold storage windows, as they must minimize heat transfer between the cold interior and warm exterior to preserve stable temperatures and reduce energy consumption. Most models adopt double or triple glazing configurations, with air or inert gas (such as argon or krypton) filling the interlayer space, which significantly lowers the U-value (thermal transmittance) and enhances insulation effects. Low-emissivity (Low-E) coatings are applied to the glass surfaces, reflecting infrared radiation and blocking heat conduction without compromising light transmission.
Anti-Fog and Anti-Condensation Performance
Condensation and frost formation on glass surfaces are major challenges in cold storage environments, which can block visibility and damage stored goods. To address this, high-quality cold storage windows integrate electric heating elements or anti-fog coatings. Electric heating films or wires are embedded in the glass or frame edges, automatically activating when temperature differences between the interior and exterior exceed a threshold to maintain the glass surface above the dew point, ensuring clear visibility at all times.
Hygienic and Easy-to-Maintain Design
Hygiene is paramount in cold storage, especially for food, pharmaceutical, and healthcare applications. Cold storage windows are manufactured using non-toxic, food-grade materials that comply with USDA and FDA standards, inhibiting bacterial growth and mold formation. The smooth, seamless glass surface and frame design prevent dust, debris, and moisture accumulation, making cleaning and disinfection straightforward. Gaskets and seals are made of food-safe synthetic rubber or PVC, which are resistant to low temperatures and easy to replace. The hardware, including handles, locks, and hinges, is made of corrosion-resistant materials, ensuring smooth operation and long service life with minimal maintenance. This design meets strict sanitary requirements for food processing, cold chain logistics, and pharmaceutical storage.
Customization and Versatile Application
Cold storage windows offer extensive customization options to adapt to diverse facility needs. They are available in various sizes, from small observation windows (0.5m x 0.5m) to large display windows, with square, rectangular, or curved shapes. Frame colors and finishes can be customized, including white baked enamel, stainless steel brushed, or color-coated options, to match the aesthetic of the cold storage facility. Opening styles include fixed, sliding, hinged, or tilt-and-turn configurations, with options for single or double doors. Additional features such as digital temperature monitoring ports, alarm system integration, and UV-resistant coatings can be added to meet specific application requirements.
· PrFood processing workshops
· Cold stores and freezer rooms
· Cold chain logistics centres and distribution warehouses
· Pharmaceutical factories and cleanrooms
· Biological laboratories and sample repositories
· Flower preservation chambers
· Low-temperature storage for
Cold Room Window & Pressure Relief Vent FAQs
I. Cold Room Observation Window (Viewing Panel)
1. What is the primary purpose of a Cold Room Observation Window?
The primary purpose of an Observation Window is to allow personnel outside the cold room to visually inspect the interior without having to open the door. This minimizes unnecessary air exchange, reduces cold loss, and maintains temperature stability, while also serving as a safety feature.
2. Why are these windows typically multi-pane (double or triple glazed)?
They are multi-pane to provide superior thermal insulation (low U-value). The air or inert gas (like Argon) sealed between the panes acts as an insulating barrier, preventing the transfer of heat from the warmer exterior to the colder interior, which is critical for minimizing energy loss and cold bridging.
3. Why do cold room windows require electric heating?
Electric heating is essential in low-temperature applications to prevent condensation (on the warm side) and frost/ice formation (on the cold side). By slightly heating the glass surface above the dew point of the surrounding air, it ensures the glass remains clear and transparent for viewing.
4. What material is commonly used for the window frame?
The frame is typically made from corrosion-resistant materials such as high-strength aluminum alloy, stainless steel, or specialized rigid PVC/plastic. The material must withstand the cold temperatures, be durable, and provide a secure, airtight seal with the cold room panel.
5. How is the Observation Window installed to ensure airtightness?
Airtightness is achieved by using specialized gasket seals and applying a flexible, cold-resistant sealant/caulking around the perimeter where the frame meets the cold room panel. This prevents the infiltration of warm, moist ambient air, which would lead to condensation and ice buildup inside the wall structure.
6. Can standard residential windows be used in a cold room?
No, standard residential windows are unsuitable. They lack the necessary thermal break, multi-pane insulation, and integrated electric heating required to prevent severe cold loss, condensation, and ice formation in continuous low-temperature environments.
7. What is the ‘Thermal Break’ feature in a cold room window?
A Thermal Break is a material barrier (usually a non-metallic, low-conductivity polymer) that separates the inner and outer layers of the window frame. Its function is to interrupt the flow of heat, preventing the frame from becoming a "cold bridge" that conducts heat into the cold room and causes external condensation/frosting.
II. Cold Room Pressure Relief Vent (Pressure Equalizer)
8. What is a Cold Room Pressure Relief Vent (PRV)?
A Pressure Relief Vent, or Pressure Equalizer, is a specialized component installed on the cold room wall to automatically equalize the air pressure between the cold room interior and the ambient exterior.
9. Why is pressure equalization necessary in a cold room?
Pressure differences occur due to:
-
Door Opening/Closing: Rapid door cycling can cause sudden pressure pulses.
-
Rapid Cooling/Pulldown: Cooling air contracts, creating negative pressure (vacuum).
-
Defrost Cycles/Heating: Heating air expands, creating positive pressure.If left unchecked, negative pressure can make doors extremely difficult to open (vacuum effect), and both positive and negative pressures can cause structural damage (bowing/cracking) to the cold room panels.
10. How does a PRV typically operate?
A typical PRV operates passively using a lightweight valve or flap system. When the pressure differential exceeds a small, set threshold (e.g., $10 \text{ Pa}$ or $0.04 \text{ inches}$ water gauge), the valve automatically opens to allow air to flow in or out until the pressure is equalized, then closes again.
11. Do Pressure Relief Vents also require electric heating?
Yes, especially in freezer rooms. Because the PRV is a deliberate opening in the wall, it must be equipped with electric heating to prevent moisture from the exchanged air from condensing and freezing the valve mechanism shut. A frozen PRV cannot function, leading to potential structural failure.
12. Where should the PRV be installed on the cold room wall?
The PRV should be installed at a location where it can be protected from physical damage, typically on an exterior wall. For walk-in freezers, two PRVs are often recommended for large rooms, located high on the wall to ensure efficient pressure regulation throughout the volume.
13. What is the difference between a one-way and a two-way PRV?
-
One-Way Vent: Only allows air to flow in one direction (e.g., designed to only relieve negative pressure). Less common for general cold rooms.
-
Two-Way Vent: The standard type, designed to relieve both positive pressure (outflow) and negative pressure (inflow), which is essential for environments with frequent temperature and volume changes.
14. How do I size or determine the number of PRVs needed for a cold room?
Sizing depends on the cold room volume, the rate of air exchange (door frequency), and the rate of temperature change (defrost/pulldown). Manufacturers provide selection charts based on these parameters. Larger rooms and those with high traffic or rapid temperature drops require more or larger PRVs.
III. Maintenance and Troubleshooting
15. What are the signs that a PRV may be blocked or malfunctioning?
The clearest signs are difficulty in opening the cold room door (due to negative pressure) or structural movement (bowing or bulging of wall panels). In a freezer, visible ice buildup around the vent opening suggests a failure of the heating element or excessive moisture ingress.
16. Why is there heavy condensation on the outside of my observation window?
Heavy external condensation indicates that the electric heating is either off or malfunctioning, or that the thermal break of the window frame is compromised. The cold inner surface of the glass is chilling the exterior surface below the ambient air's dew point.
17. How should a cold room window (glass) be cleaned?
The glass should be cleaned with non-abrasive, ammonia-free cleaning solutions. For heated windows, it is critical to ensure that no water or cleaning solution seeps into the frame or damages the electrical components and seals.
18. How should the electric heating element be tested?
The heating element can be tested by checking for power supply at the connection points and measuring the resistance across the heating element using a multimeter. An open circuit (infinite resistance) or a short circuit (zero resistance) indicates a failure.
19. What can be done to reduce frost buildup on the PRV?
Ensure the heating element is operating correctly and continuously. Also, check the surrounding seals on the wall panel to prevent moist ambient air from entering the wall structure and concentrating moisture near the vent.
20. What is a common mistake when installing a cold room PRV?
A common mistake is failing to connect the electric heating or connecting it to a circuit that is easily turned off. For freezer rooms, the PRV heater must run continuously to prevent freezing and ensure the vent is functional at all times.
| Size | Width | Height |
| Small | 600mm (23.6 inches) | 600mm (23.6inches) |
| Medium | 800mm (31.5 inches) | 800mm(31.5inches) |
| Large | 1000mm (39.4 inches) | 1000mm(39.4inches) |
Materials
| Frame | Silver Anodized Aluminum |
| Clamp/Wraparound | Suitable for panel & stud partition walls |
| Vision Panel Options |
4mm Single Glazed Polycarbonate,Clea r6mm Double Glazed /Polycarbonate / Toughened/Laminated Glass, |
| Glass Safety | ClearShatter Proof Films |
| Low Conductivity | Argon Filled double glazed units |
| Thermal Break | Thermally Broken Frames from internal to externa! |
|
Temperature Range |
+81'℃ to -41℃ |
