How to Choose the Right Cold Storage Air Curtain

In the realm of cold chain logistics and industrial refrigeration, energy efficiency and temperature integrity are paramount. One of the most critical vulnerabilities in any cold storage facility—whether it is a walk-in cooler, a large distribution warehouse, or a blast freezer—is the doorway.

Every time a door opens, a battle of thermodynamics begins. Heavy, dense cold air rushes out along the floor, while warm, humid ambient air rushes in at the top. This phenomenon, known as natural convection, wreaks havoc on energy bills, product safety, and equipment longevity.

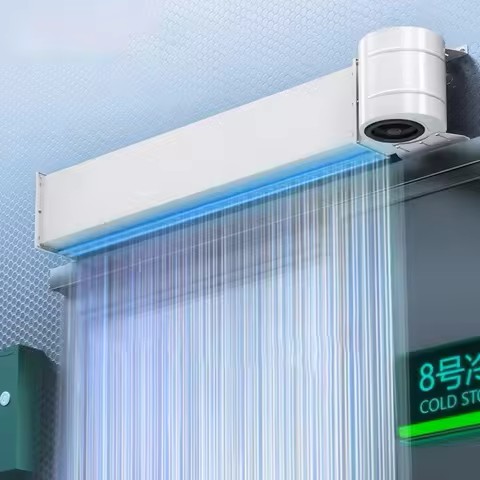

The solution is the Cold Storage Air Curtain (also known as an air door). However, selecting the right unit is not merely a matter of picking a fan that fits above the door. It requires a deep understanding of fluid dynamics, thermal physics, and operational requirements.

This guide explores every facet of choosing the right air curtain, ensuring you achieve the perfect balance between insulation, energy cost reduction, and operational efficiency.

Part 1: The Physics of the Problem

Why You Need an Air Curtain

To choose the right solution, one must first understand the magnitude of the problem. When a cold storage door opens, three types of air exchange occur:

Temperature Filtration (Convection): Due to density differences, cold air (heavier) flows out the bottom, and warm air (lighter) flows in the top. This is the primary source of energy loss.
Wind Pressure: External wind or internal negative pressure can force air through the opening.
Humidity Migration: Moisture moves from areas of high vapor pressure (warm/humid) to low vapor pressure (cold/dry).

The Role of the Air Curtain

An air curtain creates a "virtual door"—a high-velocity laminar stream of air that covers the entire opening.

The Seal Efficiency: A properly selected and installed air curtain provides a seal efficiency of 60% to 80%.
The Barrier: It acts as a kinetic barrier that prevents the outflow of cold air and the inflow of contaminants, insects, and warm moisture.

Part 2: Categorization of Cold Storage Air Curtains

Not all air curtains are created equal. Placing a standard "comfort cooling" air curtain (used at a shopping mall entrance) over a freezer door will result in immediate failure. You must distinguish between the three primary categories.

1. Ambient Air Curtains

These units intake air from the surrounding environment and discharge it without altering its temperature.

Best Use: Coolers and chillers where the temperature difference ($\Delta T$) is low (e.g., inside to outside $10^\circ\text{C}$ vs $20^\circ\text{C}$).
Limitation: If used on freezers, the nozzle discharge can freeze, or the curtain can create fog.

2. Heated Air Curtains (The Freezer Standard)

For sub-zero environments, heated air curtains are often mandatory. Note that the purpose of the heat is not to warm up the cold room.

Purpose: The heat lowers the relative humidity of the air stream, preventing the "dew point" from being reached when the air stream hits the mixing zone. This prevents mist, fog, and ice buildup on the floor.
Heat Sources:
- Electric: Most common, easy to install.
- Hot Gas: Utilizes waste heat from the refrigeration system (highly energy-efficient but complex plumbing).
- Hot Water: Requires a boiler loop.

3. Thermodynamic/Specialized Cold Store Units

These are advanced units specifically engineered for high $\Delta T$. They often use a multi-jet system or specific discharge angles to minimize turbulence and maximize the "Coanda effect" (the tendency of a fluid jet to stay attached to a convex surface).

Part 3: Critical Technical Selection Criteria

When evaluating technical data sheets, ignore the marketing fluff and look for these four specific metrics.

1. Discharge Velocity and Uniformity

The air stream must be strong enough to reach the floor but not so strong that it splashes and causes turbulence (which actually mixes the air more).

The Rule of Thumb: The air velocity at the floor level (terminal velocity) should be approximately 2.0 m/s to 3.0 m/s.
Why Uniformity Matters: If the fan creates a "dead zone" in the middle or edges, the seal is broken. Look for units with continuous plenum chambers rather than individual fans with gaps between them.

2. Air Volume (Flow Rate)

Velocity is speed; volume is the "thickness" of the curtain. A thin, high-speed stream breaks easily. A thick, moderate-speed stream is more robust.

High volume is crucial for resisting wind loads (e.g., forklift movement creating drafts).

3. The Door Dimensions (Height and Width)

Height: This is the most critical factor. An air curtain rated for 3 meters will be useless on a 5-meter door. The air stream will dissipate before hitting the floor, leaving the bottom (where the cold air leaks out) completely unprotected.
Width: The unit must be wider than the door opening. Ideally, it should overlap by 50mm to 100mm on each side to prevent edge leakage.

4. Mounting Location (Warm Side vs. Cold Side)

This is a common point of confusion.

Warm Side Mounting (Exterior): This is the industry standard for freezers. The unit is mounted on the outside (warm side) of the cold room. It draws in warm air.
- Benefit: The motor and fans do not freeze; the air is easier to heat to prevent fog.
Cold Side Mounting (Interior): Rarely recommended for freezers unless the unit is heavily insulated and equipped with internal heating elements to keep the motor lubricants fluid. It acts as an internal circulator, which is less effective for thermal separation.

Part 4: The Humidity Factor and Ice Control

In cold storage, temperature is only half the battle. Moisture management is the other half.

The Psychrometrics of the Doorway

When $30^\circ\text{C}$ air with 60% humidity meets $-20^\circ\text{C}$ air, the moisture instantly condenses.

Fog: Blinds forklift drivers, creating a severe safety hazard.
Ice: Forms on the floor threshold, causing slip hazards and damaging forklift tires/suspension.
Evaporator Icing: Excess moisture entering the room forces the evaporator coils to enter "defrost cycles" more frequently, spiking energy costs.

Selecting for Humidity

If your facility is in a high-humidity region or the temperature differential is extreme (e.g., a blast freezer), you must choose a heated air curtain.

Heated Curtain Strategy: The heater raises the dry-bulb temperature of the air stream. While this seems counter-intuitive (blowing hot air at a freezer), it significantly lowers the Relative Humidity (RH).
Outcome: The air stream remains above the dew point, eliminating fog and preventing ice formation on the floor.

Part 5: Control Systems and Automation

An air curtain that runs 24/7 when the door is closed is a waste of money. An air curtain that turns on 5 seconds after the door opens is useless. Selection involves choosing the right activation system.

1. Door Switches (Plunger/Magnetic)

The unit activates immediately when the door begins to open.

Pro Tip: Look for controllers with a delay-off timer. When the door closes, the curtain should continue running for 30–60 seconds. This dries the threshold and prevents "bounce-back" infiltration.

2. Variable Frequency Drives (VFD) / EC Motors

Modern high-efficiency units use EC (Electronically Commutated) motors.

Benefit: You can fine-tune the speed. In winter, when the $\Delta T$ is lower, you can lower the fan speed to save energy. In summer, you ramp it up to maximum power.

3. Interlocks with Rapid Roll Doors

The air curtain should be integrated into the logic of your high-speed door. The curtain should trigger the moment the door signal is sent, spinning up the fans before the door physically cracks open.

Part 6: Comparing Air Curtains vs. Strip Curtains (PVC)

Many facility managers debate between PVC strip curtains and air curtains. Often, the best solution is a hybrid, but here is the comparison for selection:

Feature	PVC Strip Curtains	Air Curtains
Initial Cost	Low	High
Seal Efficiency	85-90% (when new)	60-80%
Maintenance	High (strips scratch, cloud, break)	Low (cleaning filters/fans)
Hygiene	Low (collects grime, touches product)	High (touchless)
Visibility	Poor (scratched strips cause accidents)	Perfect visibility
Longevity	6–12 months in high traffic	10–15 years

Verdict: For high-traffic doorways (forklifts passing every few minutes), Air Curtains are superior. PVC strips become opaque and damaged quickly in high traffic, creating safety risks and losing sealing ability.

Part 7: Calculating the ROI (Return on Investment)

To justify the higher cost of a premium cold storage air curtain, you must understand the payback calculation.

The Energy Loss Equation

The sensible heat loss through an open door can be approximated using standard engineering formulas involving the area of the door, the time open, and the enthalpy difference between inside and outside air.

$Q = 0.577 \times W \times H^{1.5} \times (1 - E) \times Δ H \times \sqrt{\frac{1}{R_{s}} - \frac{1}{R_{i}}}$

Where:

$Q$ = Heat loss
$W$ = Width
$H$ = Height
$E$ = Effectiveness of the curtain (0.6 to 0.8)
$\Delta H$ = Enthalpy difference

The Financial Argument

Direct Energy Savings: Reduced load on compressors.
Defrost Cycles: Reduction in defrost frequency (which consumes massive electricity).
Safety: Elimination of slip-and-fall lawsuits due to ice.
Product Quality: Prevention of "micro-thaws" near the door, preserving food texture and safety.

Typically, a high-quality cold storage air curtain pays for itself in 12 to 24 months.

Part 8: Installation and Construction Quality

When selecting a brand or model, look at the build quality. Cold storage environments are harsh.

Material Selection

Housing: Avoid plastic or standard painted steel if the unit is exposed to washdowns. 304 Grade Stainless Steel is the gold standard for food safety and corrosion resistance.
IP Rating: The motor and electrical components should be rated at least IP55 (protected against dust and low-pressure water jets), especially if the facility undergoes chemical cleaning.

Nozzle Design

The nozzle is where the technology shines.

Look for adjustable discharge vanes. You rarely want the air blowing straight down ($0^\circ$).
Usually, the air should be angled 15° to 20° outward (toward the warm side). This helps push the invading warm air back before it penetrates the cold room.

Part 9: Common Mistakes to Avoid

Even with the best budget, buyers make fatal errors.

1. The "Under-Spec" Error

Buying a unit designed for a 3-meter door and putting it on a 4-meter door. The air stream dies at 3 meters. The bottom 1 meter—where the heaviest cold air leaks out—is completely open. The curtain is now 0% effective.

2. The "Gap" Error

Installing the curtain 30cm above the door header because of obstructions (pipes/conduit).

Result: Air leaks through the gap between the wall and the unit.
Fix: Use rigid panels or transom fillers to seal the gap between the unit and the door header completely.

3. Neglecting Negative Pressure

If your building has massive exhaust fans elsewhere creating negative pressure, an air curtain alone cannot stop the inflow. You must balance the building's air pressure before the air curtain can work effectively.

Part 10: Summary Checklist for Buyers

Before contacting a supplier, gather this data to ensure you get the right recommendation:

Door Dimensions: Exact clear opening height and width.
Temperatures: Interior temperature vs. Exterior (ambient) temperature.
Traffic Pattern: How many times per hour does the door open?
Voltage: Available power (Single phase vs. Three phase).
Environment: Is it a food processing area (requiring Stainless Steel)? Is it a wash-down zone?
Existing Door Type: Roller shutter, sectional, sliding? (Affects mounting brackets).

Conclusion

Choosing the right cold storage air curtain is an exercise in precision. It is not just a fan; it is a thermal barrier that protects your bottom line and your product integrity.

For a standard chiller ($0^\circ\text{C}$ to $5^\circ\text{C}$), a robust ambient unit with high velocity is sufficient. However, for freezers ($-18^\circ\text{C}$ and below), you cannot compromise: you need a heated, high-velocity unit mounted on the warm side, sized perfectly to the width and height of the opening.

Investing in the correct system will result in a dry floor, a reduced energy bill, and a longer lifespan for your refrigeration compressors.
